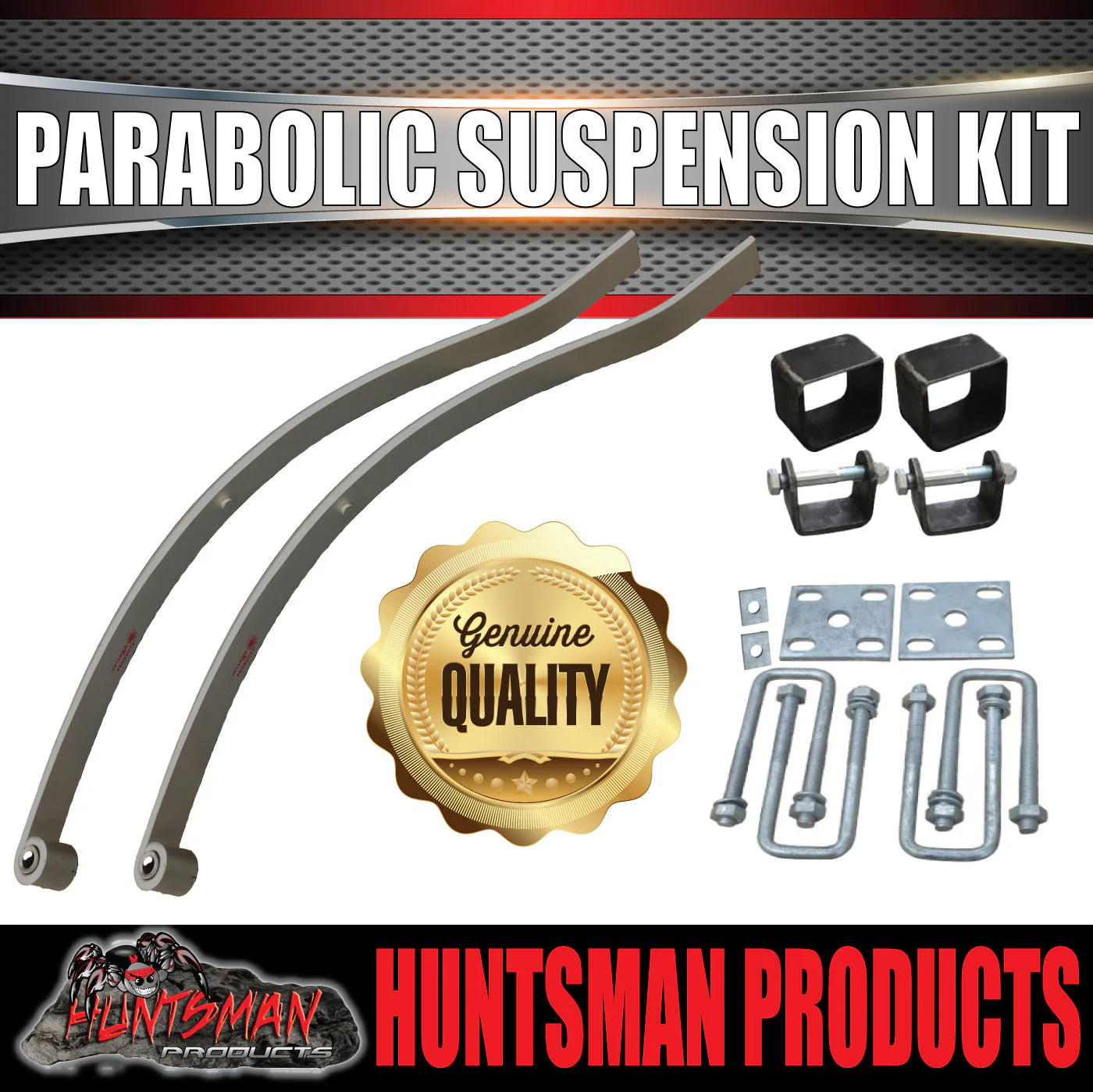

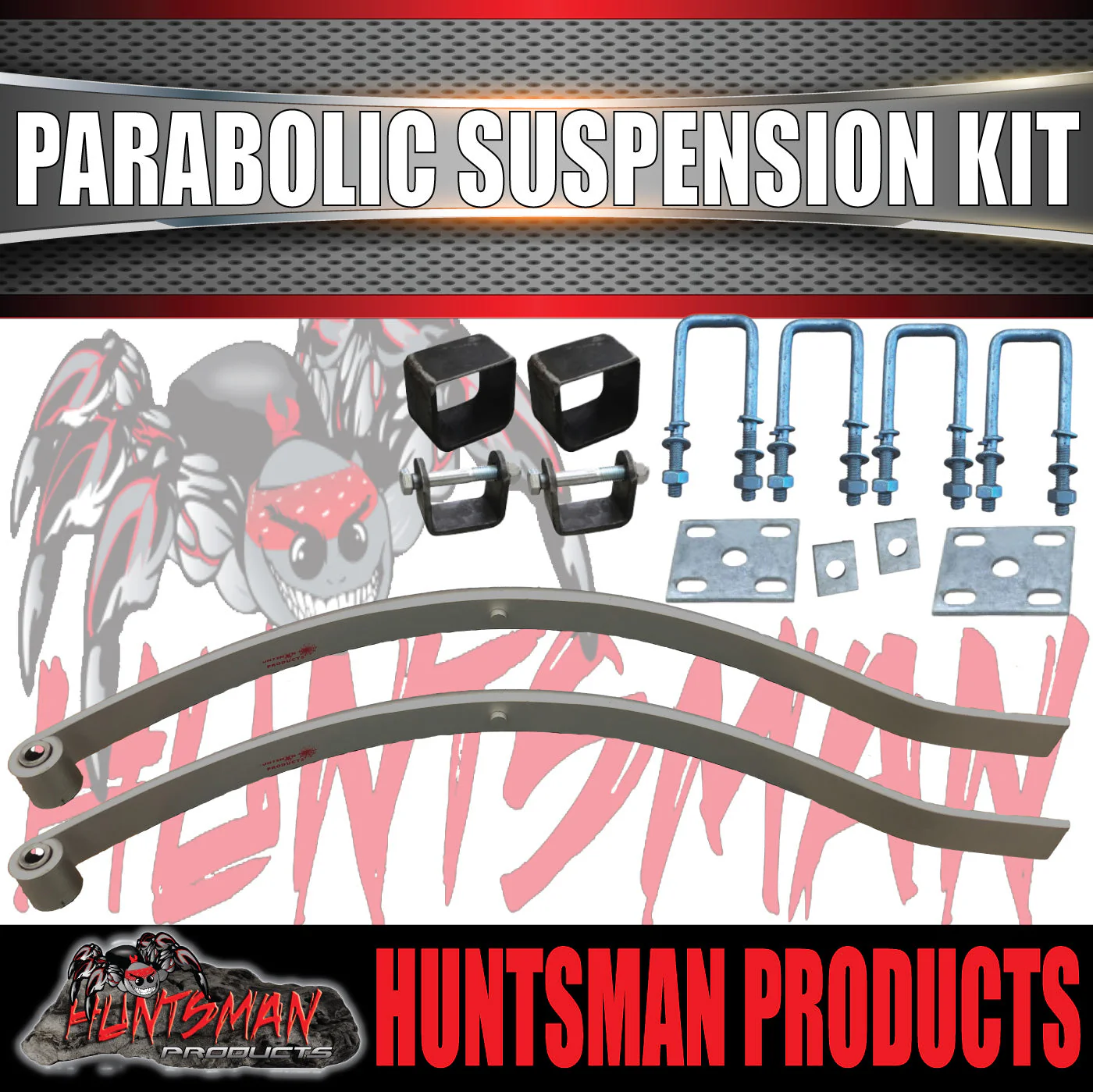

x2 Dacromet 18mm Trailer Parabolic 1500kg Springs + U Bolt & Hanger Kit.
DACROMET FINISH 18MM THICK 45MM WIDE PARABOLIC SPRINGS
WITH HANGER AND U BOLT KIT
1500KG RATED PER PAIR
2X 45MM WIDE GALVANISED/DACROMET FINISH PARABOLIC SPRINGS (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
2X REAR HANGERS
2X FRONT EYE HANGERS
2X STAINLESS STEEL SLIPPER HANGER BOLTS with spring washers and nuts
4X 39MM ROUND, 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE X 130MM U BOLTS WITH SPRING WASHERS AND NUTS (1/2 BSW) GALVANISED
2X 45 X 50 X 8MM FISH PLATE GALVANISED FINISH
2X GALVANISED AXLE PADS
Please advise on ordering if you require 40mm , 45mm or 50mm U bolts
PARABOLIC SPRINGS
RATED TO 1500KG PER PAIR
SPRING LENGTH 780MM OVERALL

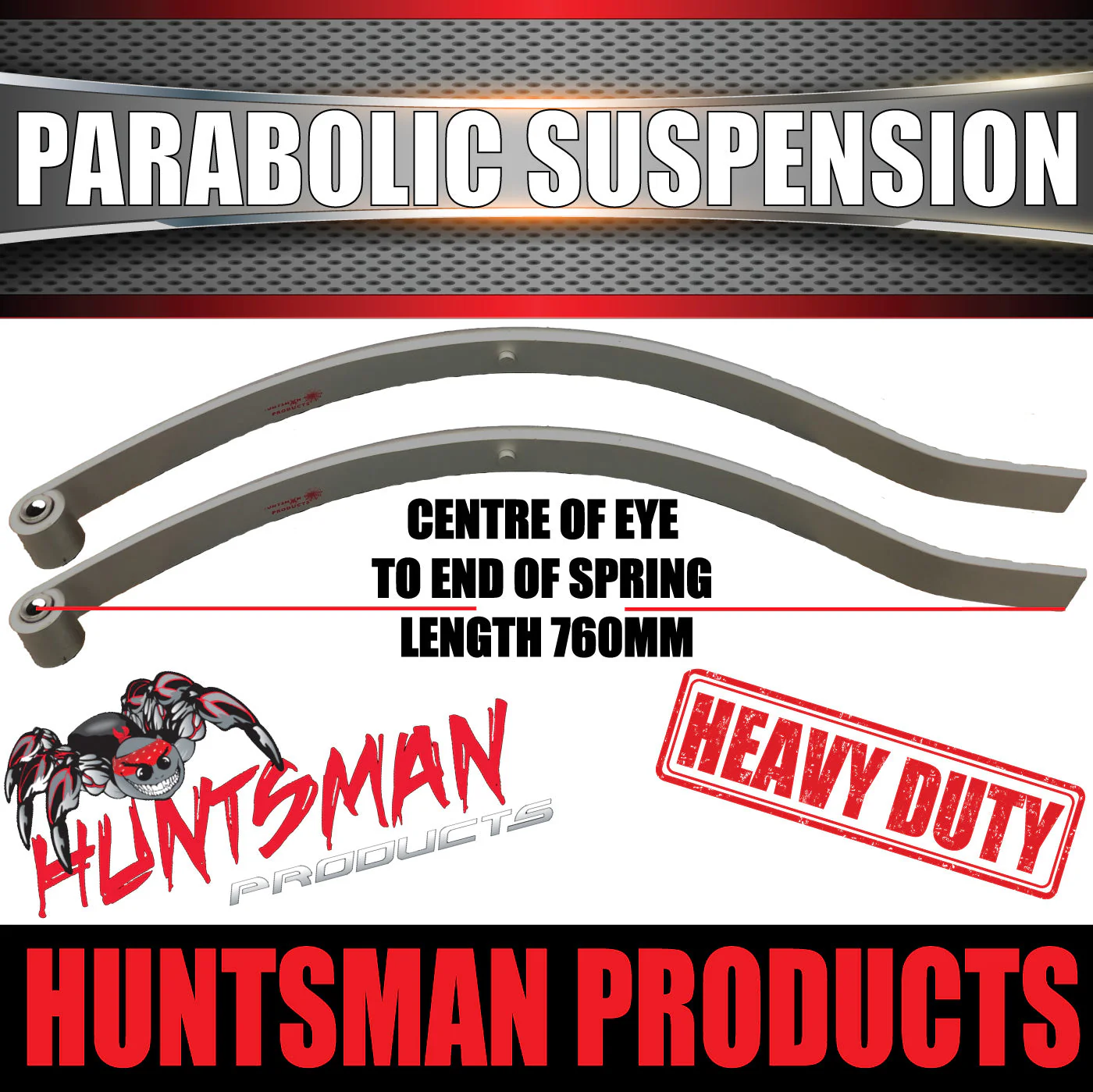

CENTRE OF EYE TO END OF SPRING LENGTH 760MM

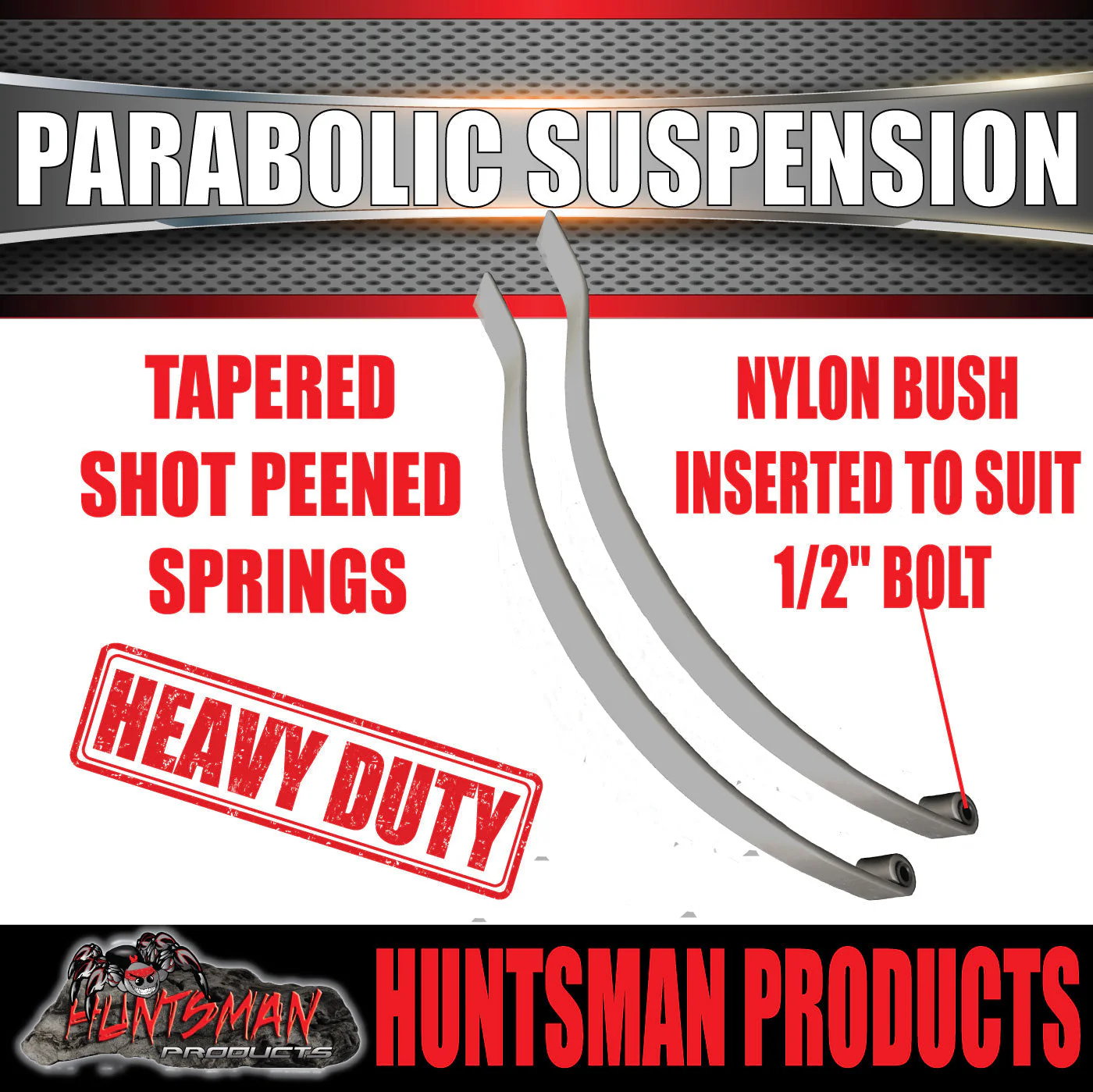

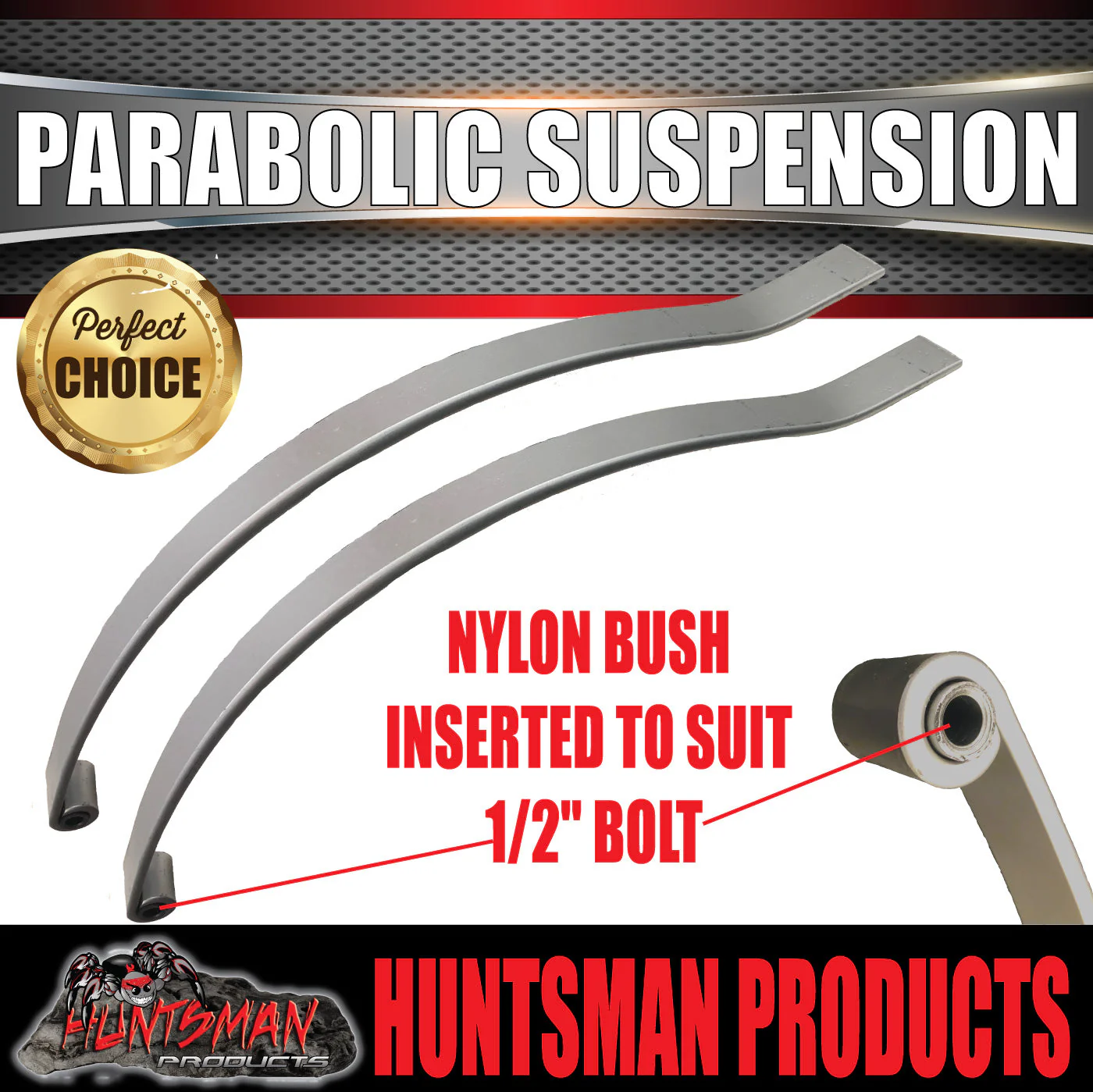

BUSH: NYLON BUSH INSERTED TO SUIT 1/2" BOLT
FRONT EYE TO CENTRE BOLT: 330MM
CAMBER ARC: 150MM
SPRING WIDTH: 45MM
LEAF THICKNESS: 18MM
LESS CHANCE OF RUSTING THAN MULTIPLE LEAFED SPRINGS
SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
Original: $99.85
-70%$99.85
$29.95More Images
x2 Dacromet 18mm Trailer Parabolic 1500kg Springs + U Bolt & Hanger Kit.
DACROMET FINISH 18MM THICK 45MM WIDE PARABOLIC SPRINGS
WITH HANGER AND U BOLT KIT
1500KG RATED PER PAIR
2X 45MM WIDE GALVANISED/DACROMET FINISH PARABOLIC SPRINGS (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
2X REAR HANGERS
2X FRONT EYE HANGERS
2X STAINLESS STEEL SLIPPER HANGER BOLTS with spring washers and nuts
4X 39MM ROUND, 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE X 130MM U BOLTS WITH SPRING WASHERS AND NUTS (1/2 BSW) GALVANISED
2X 45 X 50 X 8MM FISH PLATE GALVANISED FINISH
2X GALVANISED AXLE PADS
Please advise on ordering if you require 40mm , 45mm or 50mm U bolts
PARABOLIC SPRINGS
RATED TO 1500KG PER PAIR
SPRING LENGTH 780MM OVERALL
CENTRE OF EYE TO END OF SPRING LENGTH 760MM
BUSH: NYLON BUSH INSERTED TO SUIT 1/2" BOLT
FRONT EYE TO CENTRE BOLT: 330MM
CAMBER ARC: 150MM
SPRING WIDTH: 45MM
LEAF THICKNESS: 18MM
LESS CHANCE OF RUSTING THAN MULTIPLE LEAFED SPRINGS
SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
