Trailer Caravan Swing Up Jack Stand. 350Kg Rated. Jockey Wheel Style, Greasable
SWING UP JACK STAND. 350Kg RATED
JOCKEY WHEEL STYLE
GREASABLE
CLOSED OVERALL HEIGHT: 410MM (not including plastic wind handle)
EXTENDED OVERALL HEIGHT: 670MM (not including plastic wind handle)

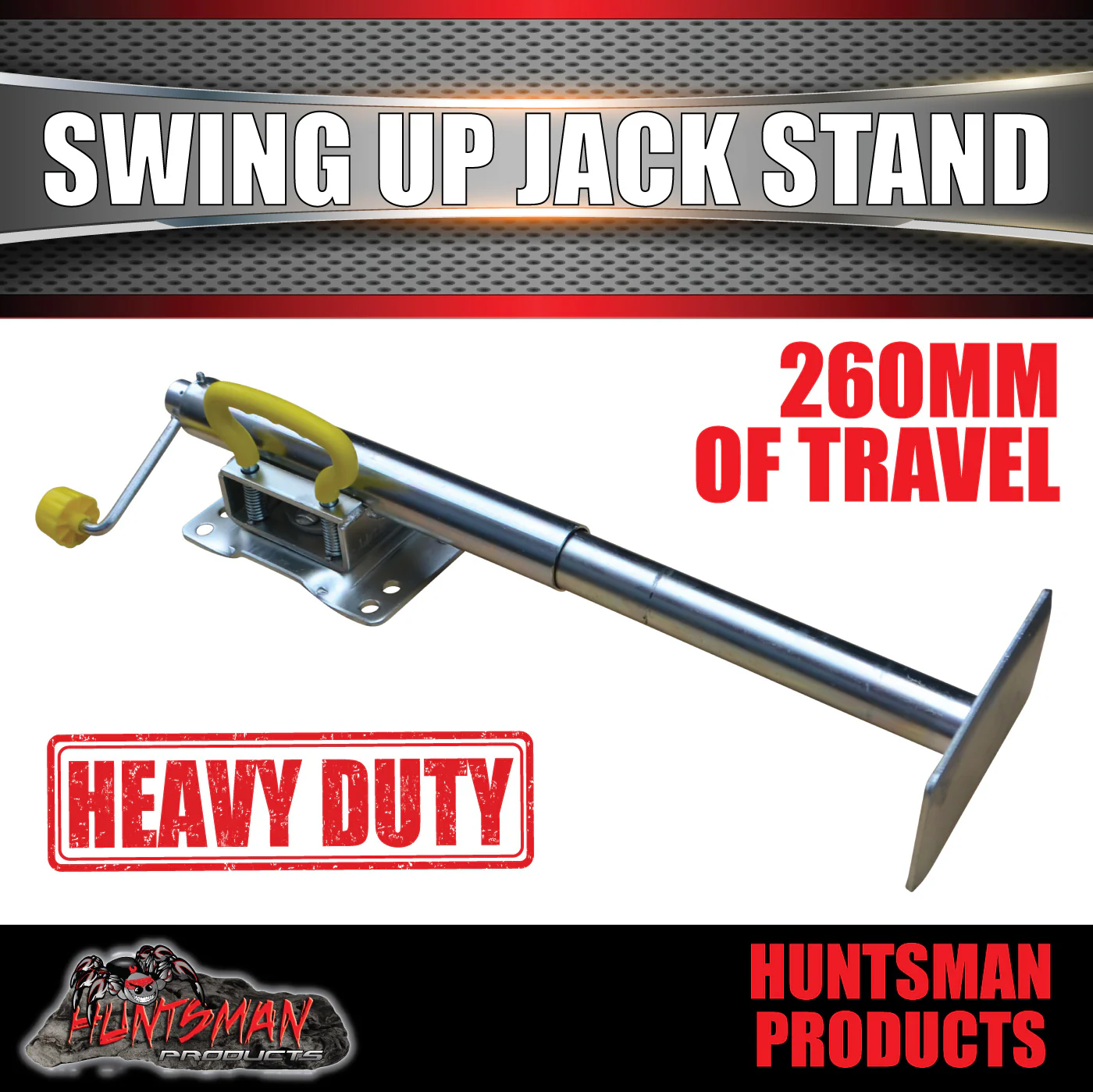

TRAVEL: 260MM
PLATE SIZE: 100MM X 190MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN CLOSED: 260MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN EXTENDED: 520MM

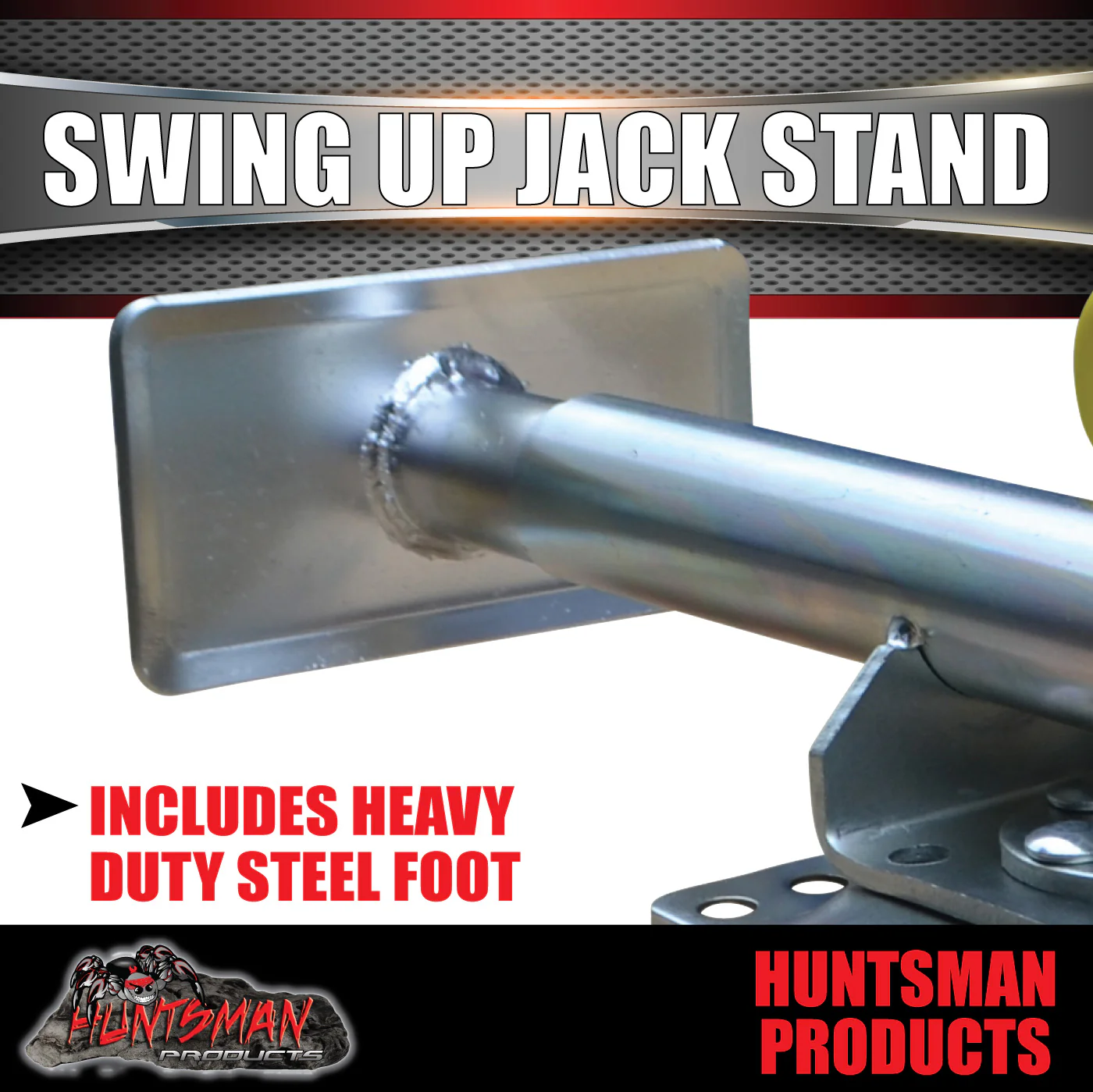

STEEL FOOT

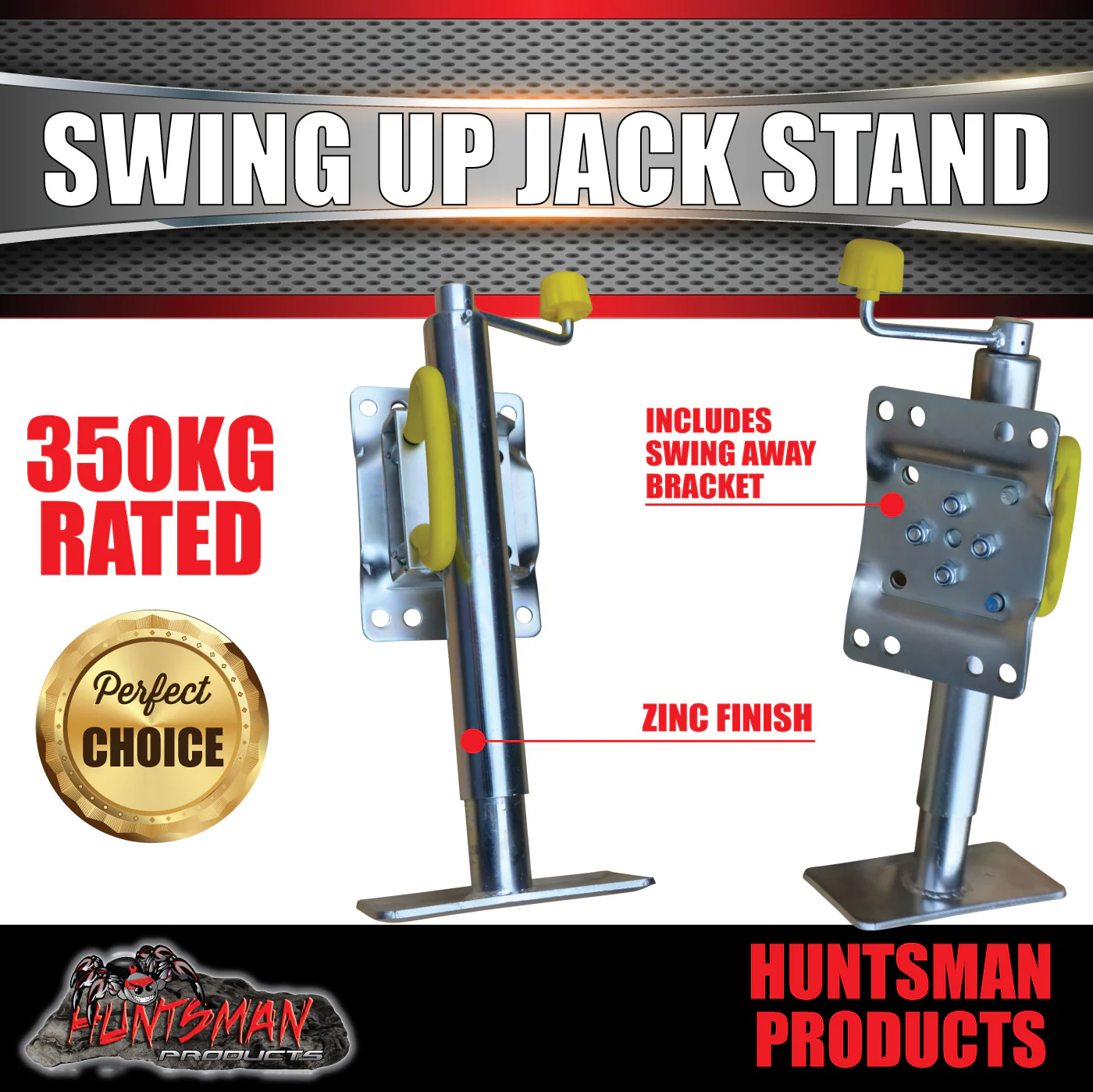

SWING AWAY BRACKET

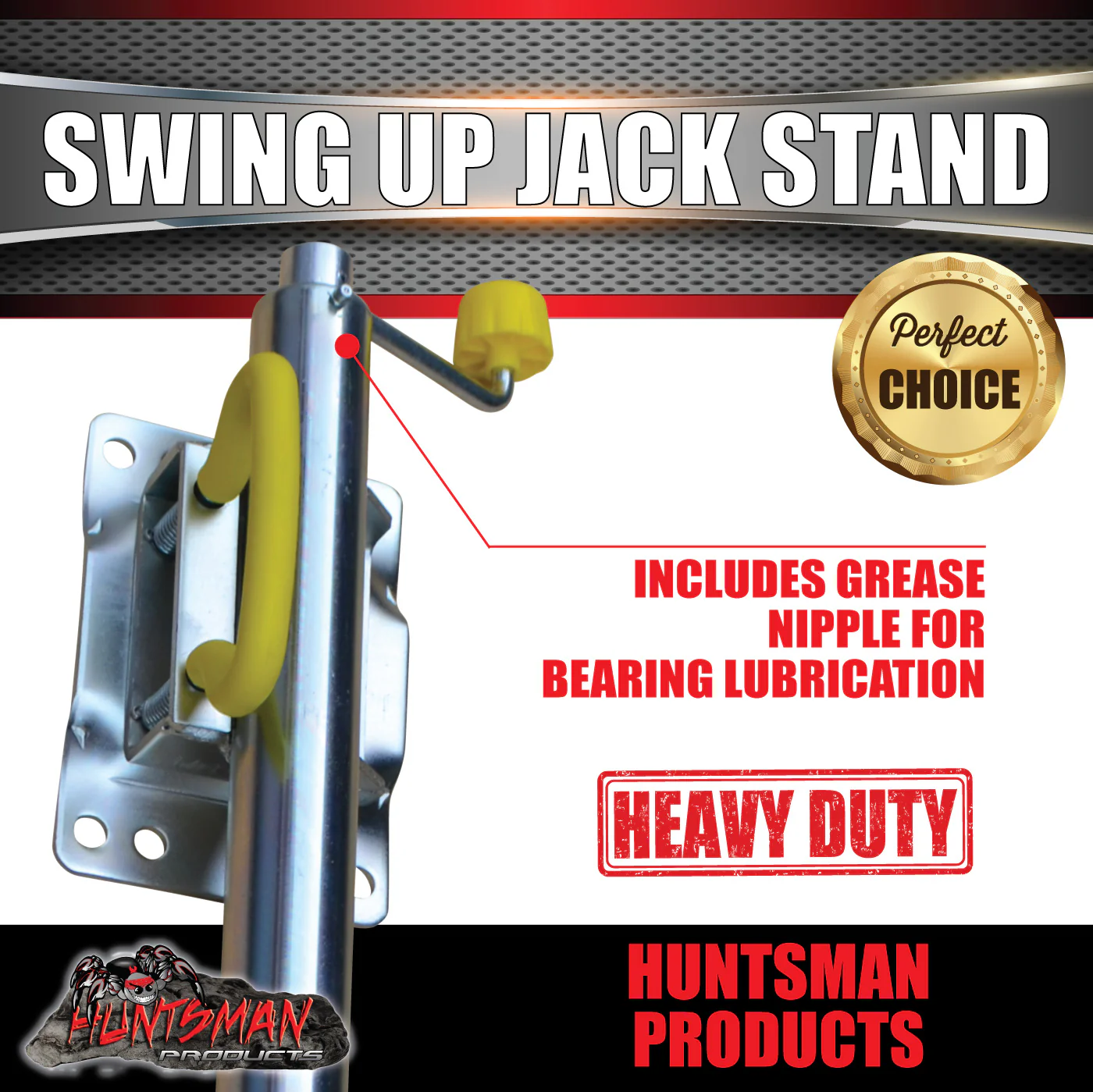

COMES WITH GREASE NIPPLE FOR BEARING LUBRICATION
FINISH: ZINC COATING
GENERALLY USED ON TRAILERS AND SMALL CARAVANS
More Images
Trailer Caravan Swing Up Jack Stand. 350Kg Rated. Jockey Wheel Style, Greasable
SWING UP JACK STAND. 350Kg RATED
JOCKEY WHEEL STYLE
GREASABLE
CLOSED OVERALL HEIGHT: 410MM (not including plastic wind handle)
EXTENDED OVERALL HEIGHT: 670MM (not including plastic wind handle)
TRAVEL: 260MM
PLATE SIZE: 100MM X 190MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN CLOSED: 260MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN EXTENDED: 520MM
STEEL FOOT
SWING AWAY BRACKET
COMES WITH GREASE NIPPLE FOR BEARING LUBRICATION
FINISH: ZINC COATING
GENERALLY USED ON TRAILERS AND SMALL CARAVANS
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SWING UP JACK STAND. 350Kg RATED
JOCKEY WHEEL STYLE
GREASABLE
CLOSED OVERALL HEIGHT: 410MM (not including plastic wind handle)
EXTENDED OVERALL HEIGHT: 670MM (not including plastic wind handle)
TRAVEL: 260MM
PLATE SIZE: 100MM X 190MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN CLOSED: 260MM
BOTTOM OF PLATE TO CENTRE OF MOUNT WHEN EXTENDED: 520MM
STEEL FOOT
SWING AWAY BRACKET
COMES WITH GREASE NIPPLE FOR BEARING LUBRICATION
FINISH: ZINC COATING
GENERALLY USED ON TRAILERS AND SMALL CARAVANS
