DIY Trailer Kit 1400Kg Rated Hydraulic drum Braked Slipper Springs. Jap Bearings. Axles 78" - 96"

DIY 1400KG TRAILER KIT
HYDRAULIC DRUM BRAKES,SLIPPER SPRINGS
Japanese KOYO Bearings

AXLE LENGTHS 78" - 96" (for shorter axles SKU:173485126821)



STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)



AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

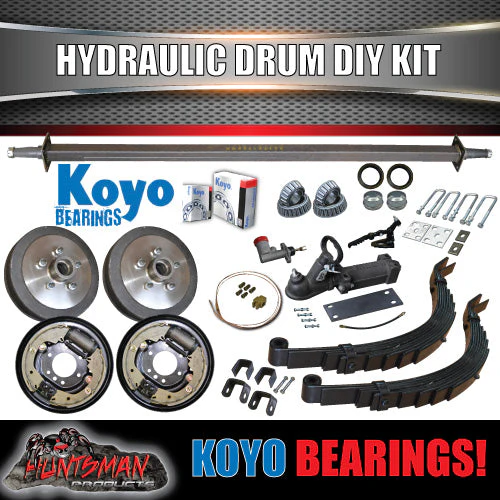

IN THIS KIT

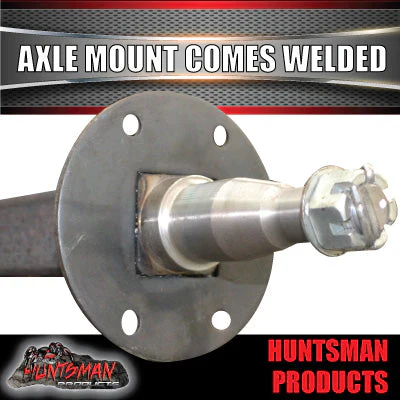

1X 45MM SQUARE SOLID AXLE WITH HYDRAULIC MOUNTS ALREADY WELDED , ALSO COMES WITH SPLIT PINS & WASHERS. AVAILABLE IN 78", 79", 81", 83",85", 87", 89", 91",93", 94", 96" ( TIP TO TIP)

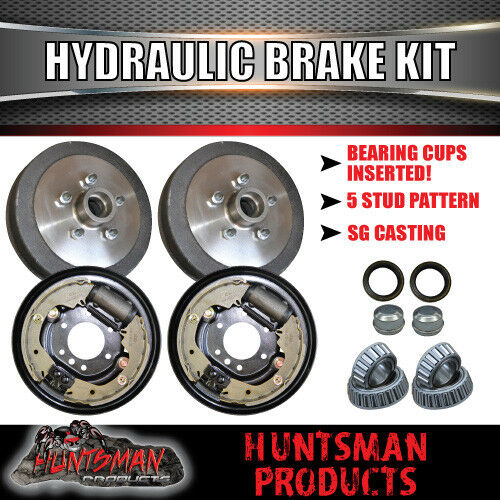

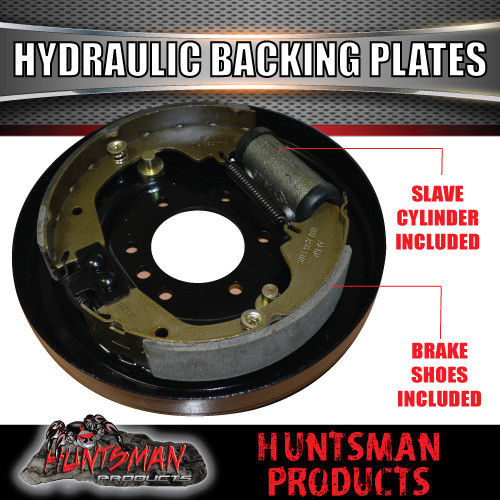

1X LEFT HAND 9" HYDRAULIC BRAKE BACKING PLATE
1X RIGHT HAND 9" HYDRAULIC BRAKE BACKING PLATE
2X 9" HUB DRUMS.  S.G CASTING.  WHEEL STUDS AND NUTS SUPPLIED (drums come with cups already inserted)
2X SLIMLINE JAPANESE KOYO BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

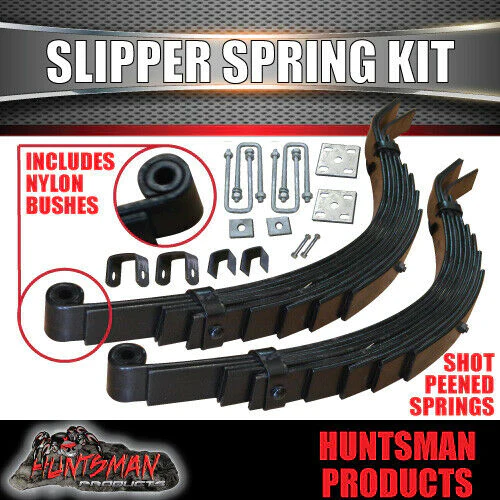

2X 9 LEAF 45MM X 6MM BLACK EYE TO SLIPPER SPRINGS. RATED 1600KG PER PAIR (springs are shot peened for extra strength)

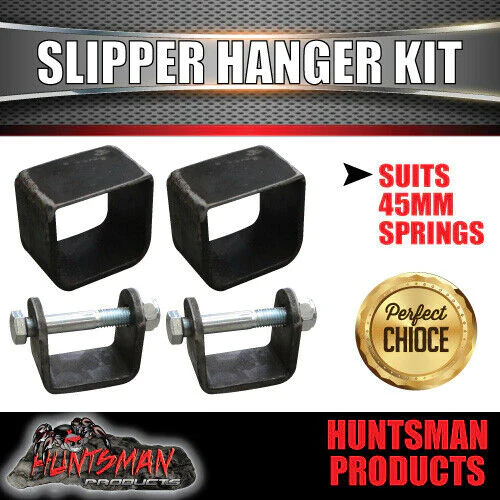

2X FRONT HANGERS WITH SPRING BOLTS
2X REAR HANGERS
2X FISH PLATES
4X 45MM X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

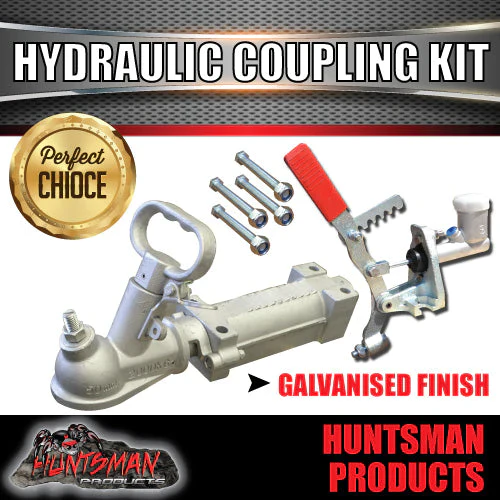

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING BASE PLATE
1X 3/4"MASTER CYLINDER WITH STAINLESS MOUNTING BOLTS
1X MASTER CYLINDER BRACKET

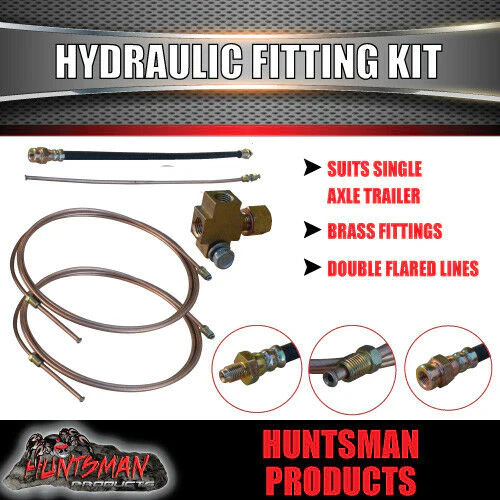

1 X 300MM MALE/FEMALE FLEXI HOSE
1X 2500MM MAIN COUPLING TO AXLE FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING WITH PRE FLARED LINES SUPPLIED!!

Please check coupling to axle hydraulic line length.  if longer is required please get in contact with us

ON PURCHASING PLEASE PROVE YOUR STUD PATTERN AND AXLE LENGTH



upgrade to the easy instillation hydraulic line setup.
12ft set up: $50
16ft set up: $55

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"



EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295
ASSEMBLE OF AXLE $50



SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
