DIY 4200Kg Tri Axle Hydraulic Disc Boat trailer Kit Dacromet Springs, Hydrapro, Axles 78" - 96"

4200KG DIY TRI AXLE BOAT TRAILER KIT
ROCKER ROLLER SPRINGS, 45MM AXLES, HYDRAPRO ACTUATOR
AXLE LENGTHS 78" - 96" (for shorter axles SKU: 190810870794)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $300 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$300 12" DISCS



AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

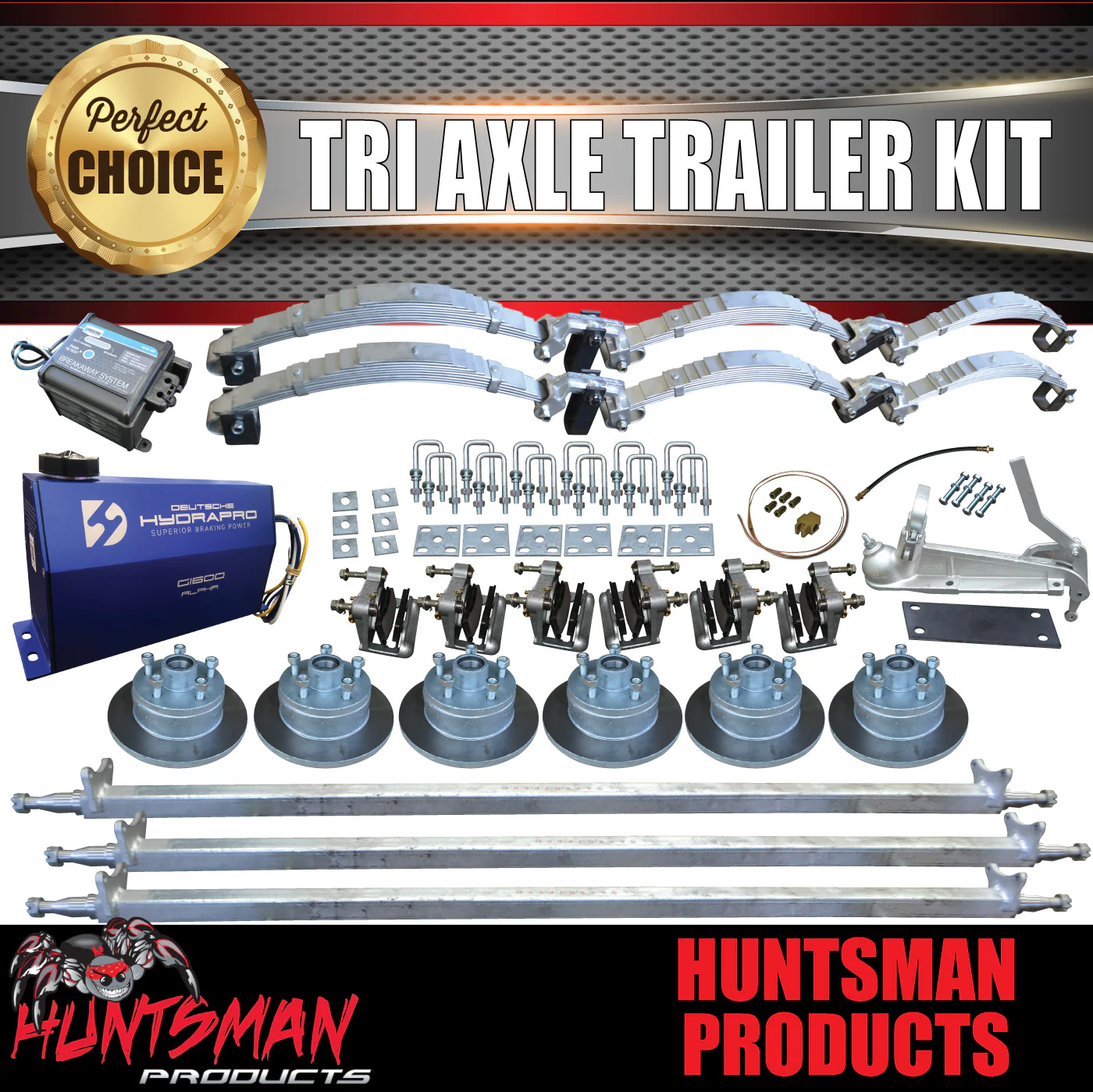

IN THIS KIT

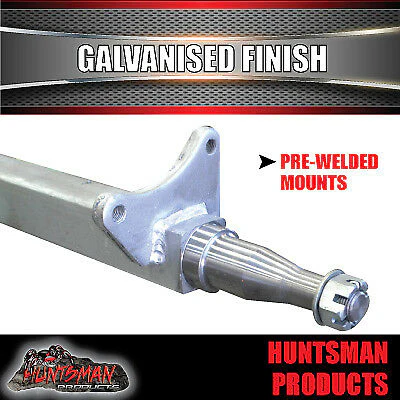

3X 45MM GALVANISED SQUARE AXLES WITH HYDRAULIC FLANGES WELDED. AVAILABLE IN 78", 79", 81", 83", 85", 87", 89", 91", 93", 94", 96" TIP TO TIP. (PLEASE NOTE THE FLANGES ARE WELDED TO AXLE AFTER IT IS GALVANISED AND COLD GALVANISE IS APPLIED WHERE THE FLANGES HAVE BEEN WELDED) AXLES RATED 1400KG EACH. TIP TO TIP = 100MM MORE THAN HUB FACE TO HUB FACE

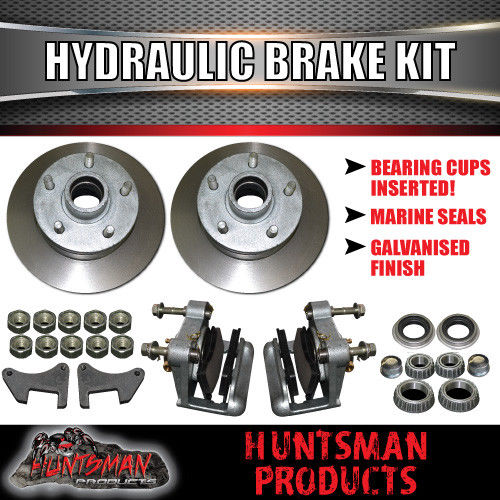

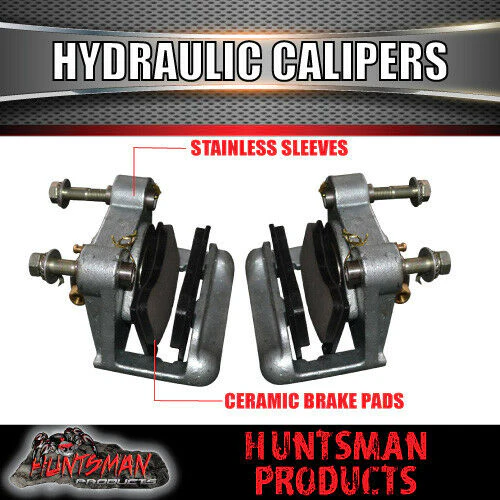

6X GALVANISED HYDRAULIC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS AND ZINC MOUNT BOLTS
6X PAIRS DISC BRAKE PADS

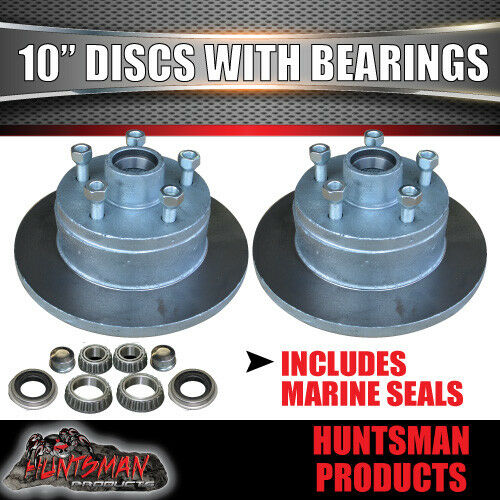

6X 10" GALVANISED DACROMET HYDRAULIC BRAKE DISCS. 15MM THICK DISCS (CUPS ALREADY INSERTED INTO DISCS)
6X SLIMLINE BEARING KITS INCLUDING MARINE SEALS AND DUST CAPS.
ALL WHEEL NUTS TO SUIT STUD PATTERN PROVIDED

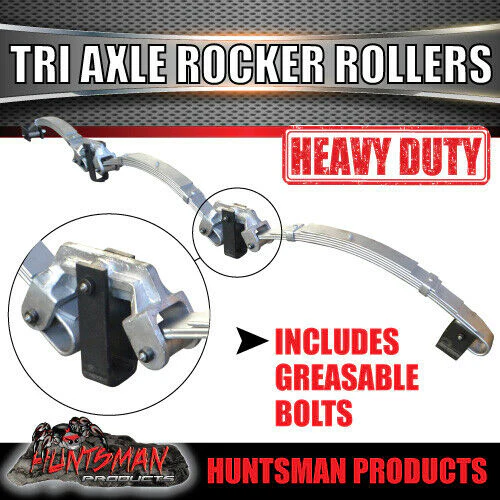

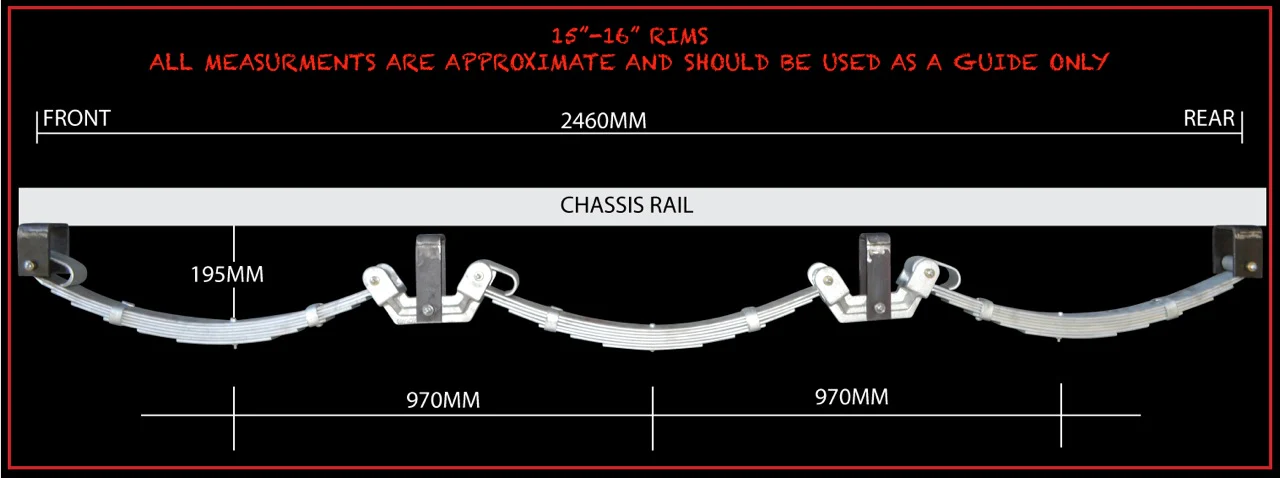

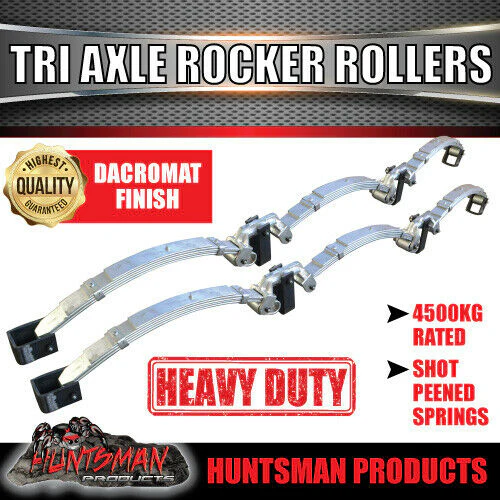

1X TRI AXLE 6 LEAF GALVANISED DACROMET ROCKER ROLLER LOAD SHARING SPRING SET WITH ALL GREASABLE HIGH TENSILE SHACKLE BOLTS & STEEL BUSHES. (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
6X GALVANISED FISH PLATES
12X GALVANISED 45MM X 150MM 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
6X GALVANISED AXLE PADS

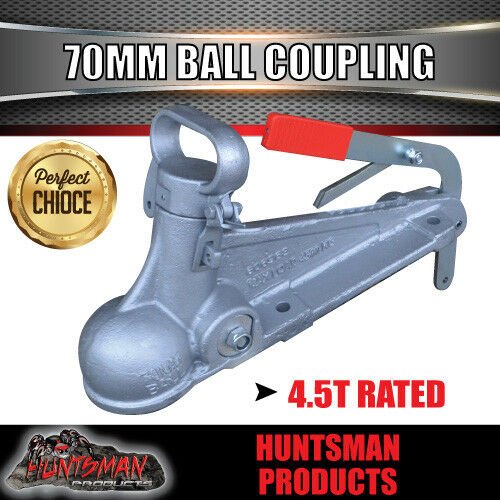

1X 4500KG 70MM GALVANISED DACROMET ELECTRIC BALL COUPLING
COUPLING CTA APPROVAL NUMBER: CTA-061054

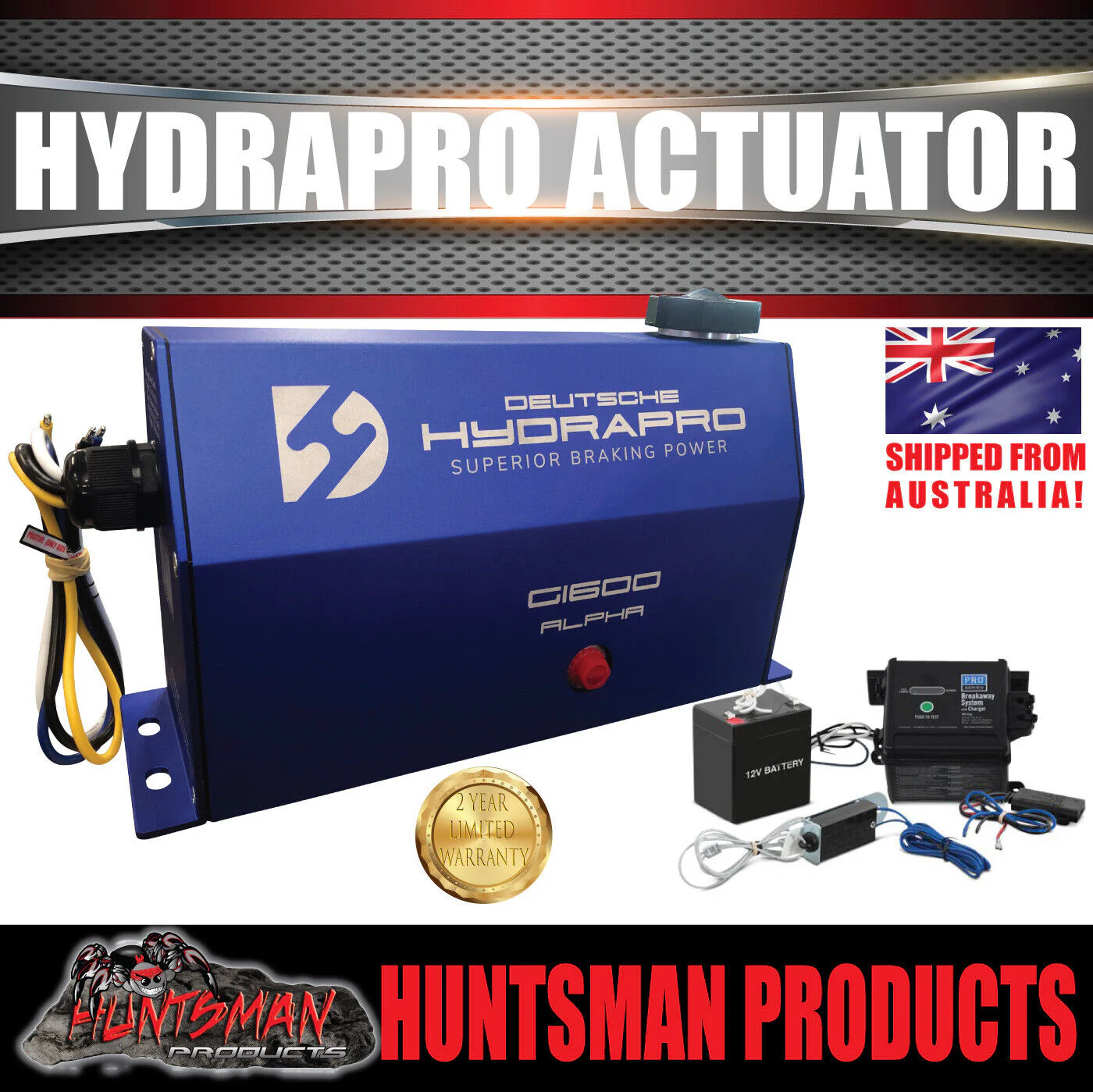

1X DEUTSCHE 1600PSI HYDRAPRO ELECTRIC OVER HYDRAULIC ACTUATOR

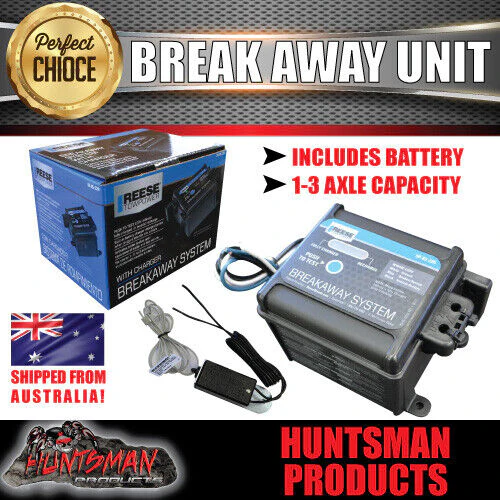

1X TROJAN BRAKE AWAY UNIT1X 4 HOLE COUPLING WELD ON PLATE
4X COUPLING HIGH TENSILE BOLTS AND AND NYLOC NUTS
1X 6100MM COUPLING TO FRONT AXLE MAIN FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
3X 2000MM FLARED BUNDY LINE WITH NUTS
5X 500MM FLARED BUNDY LINE WITH NUTS
5X 400MM MALE / FEMALE FLEXI LINES
1X BRASS T PIECE
2X BRASS 4 WAY BLOCKS
1X MASTER CYLINDER BRASS NUT AND WASHER

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE. DROP AXLES TAKE APPROX 5 BUSINESS DAYS TO ENGINEER
GALVANISED GULL WING AXLES $180 PER AXLE
TRI AXLE RUBBER FLEXI LINE KIT UPGRADE +$145
TRI AXLE BRAIDED STAINLESS FLEXI LINE KIT UPGRADE +$190
ASSEMBLE OF AXLE $50 PER AXLE
JAPANESE MANUFACTURED BEARINGS $150 (CLICK ON LINK BELOW)
HUNTSMAN STAINLESS CALIPERS AND DISCS (POA)

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
