DIY 2000KG TANDEM TRAILER KIT, SLIPPER SPRINGS, HYDRAULIC BRAKES. AXLE LENGTHS 81"- 96"

DIY TANDEM TRAILER KIT
HYDRAULIC DRUM BRAKES. SLIPPER SPRINGS
AXLE LENGTHS 79" - 96"


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)



AVAILABLE LENGTHS
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

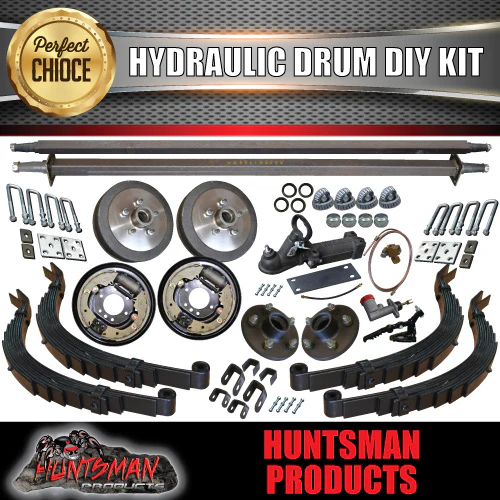

IN THIS KIT

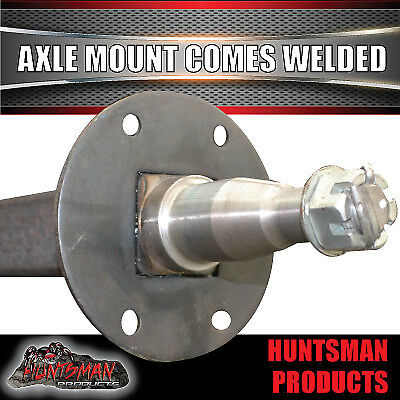

1X 40MM SQUARE AXLE WITH HYDRAULIC BRAKE MOUNTS WELDED TO AXLE, 1000KG RATED ( AVAILABLE IN 81", 83", 85", 87", 89", 91", 94", 96"" TIP TO TIP ( IF YOUR NOT SURE ON THE SIZE YOU NEED THEN SEND US A MESSAGE WITH YOUR CHASSIS WIDTH AND WHEELS YOUR USING IN WHICH WE WILL GIVE OUR JUDGEMENT)". AXLES ARE SUBJECT TO AVAILABILITY
1X 40MM SQUARE BARE AXLE, 1000KG RATED

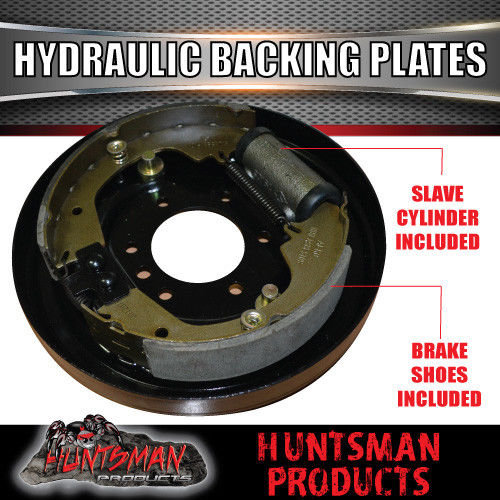

2X 9" HYDRAULIC BACKING PLATES WITH HIGH TENSILE BOLTS AND NUTS FOR FIXING TO BRAKE MOUNTS

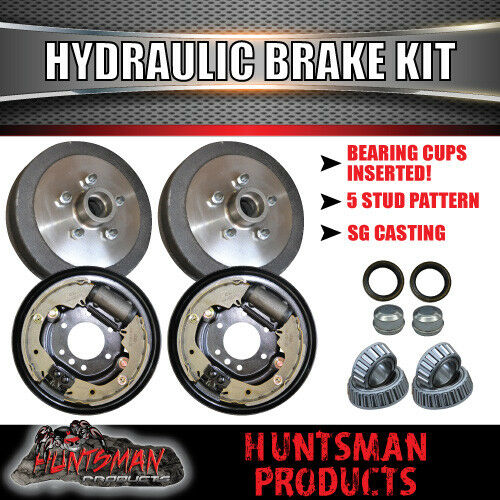

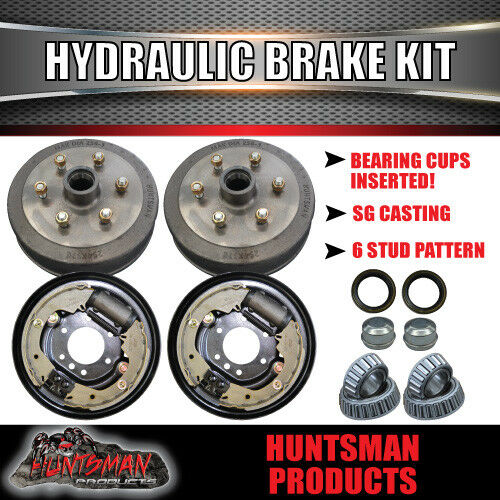

2X 9" HYDRAULIC BRAKE DRUMS. (CUPS ALREADY INSERTED INTO DRUMS)

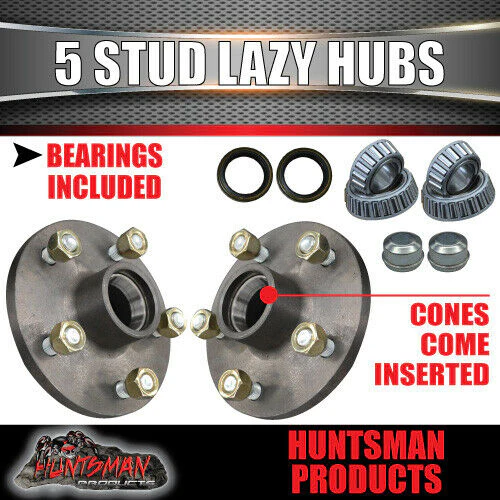

2X LAZY HUBS (CUPS ALREADY INSERTED INTO DRUMS)
4X LM BEARING KITS INCLUDING DUST SEALS AND DUST CAPS
ALL WHEEL NUTS TO SUIT STUD PATTERN PROVIDED

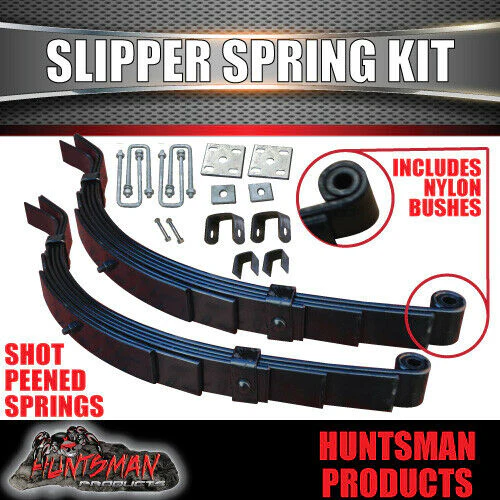

4X 6 LEAF SLIPPER SPRINGS WITH NYLON BUSHES. RATED 1200KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

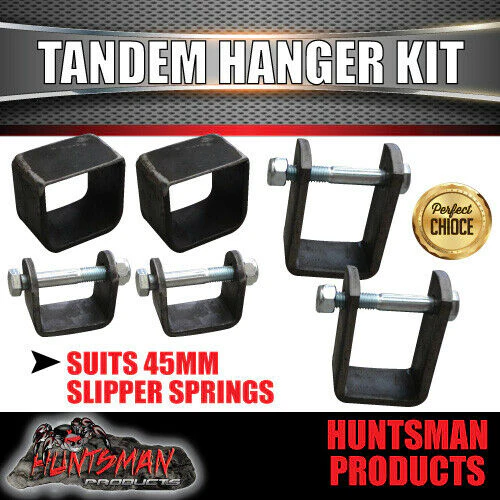

2X FRONT SLIPPER HANGERS
2X REAR SLIPPER HANGERS
2X MIDDLE LARGE SLIPPER HANGERS
4X FISH PLATES
8X 40MM X 150MM 1/2" U BOLTS WITH NUTS AND WASHERS
4X AXLE PADS
1X 2000KG OVERRIDE BALL COUPLING
1X 3/4 MASTER CYLINDER BRACKET
1X 3/4 MASTER CYLINDER WITH MOUNTING BOLTS
1X 4 HOLE COUPLING WELD ON PLATE
4X COUPLING HIGH TENSILE BOLTS, NUTS AND WASHERS

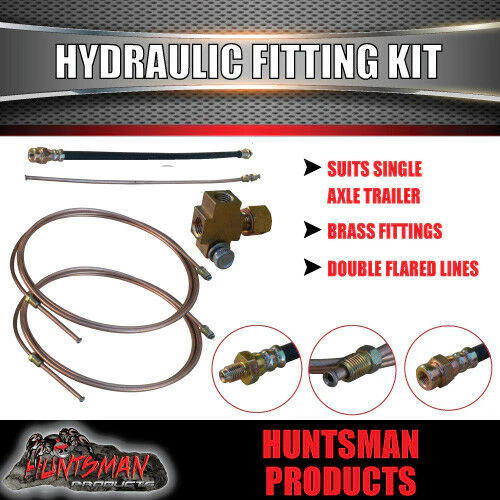

1 X 300MM MALE/FEMALE FLEXI HOSE
1X 2500MM COUPLING TO AXLE MAIN FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING WITH PRE FLARED LINES!!

Please check coupling to axle hydraulic line length. if longer is required please get in contact with us
When ordering please supply your stud pattern and axle length



upgrade to the easy instillation hydraulic line setup.
12ft set up: $50 (click on link below)
16ft set up: $55 (click on link below)

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"



EXTRAS AVAILABLE

2" OR 4" DROP AXLES $295 EACH AXLE. DROP AXLES APPROX 5 DAYS TO ENGINEER
NATURAL FINISH GULL WING AXLE UPGRADE $150 EACH
ASSEMBLE OF AXLE $50 PER AXLE
JAPANESE MANUFACTURED BEARINGS $100 (CLICK ON LINK BELOW)



 "CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"



SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
