DIY 1400Kg Trailer Kit. Hydraulic drum Braked Eye to Eye Springs, Axles 78" - 96"

DIY 1400KG TRAILER KIT
HYDRAULIC DRUM , EYE TO EYE SPRINGS
AXLE LENGTHS 78" - 96" (for shorter axles sku: 190690286733)



STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)



AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

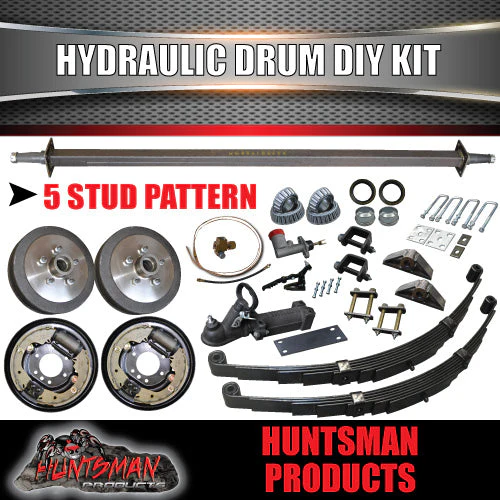

IN THIS KIT

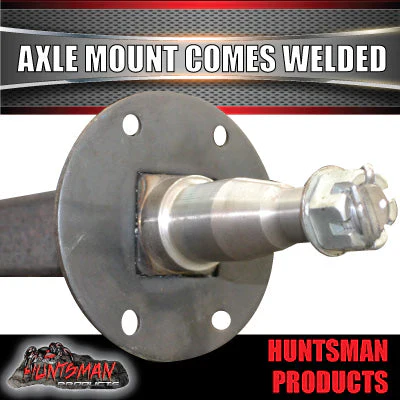

1X 45MM SQUARE SOLID AXLE WITH HYDRAULIC MOUNTS ALREADY WELDED , ALSO COMES WITH SPLIT PINS & WASHERS. AVAILABLE IN 78", 79", 81", 83",85", 87", 89", 91", 94", 96" ( TIP TO TIP)

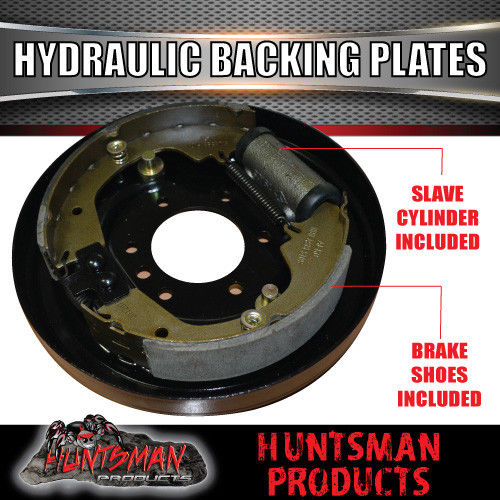

1X LEFT HAND 9" HYDRAULIC BRAKE BACKING PLATE
1X RIGHT HAND 9" HYDRAULIC BRAKE BACKING PLATE

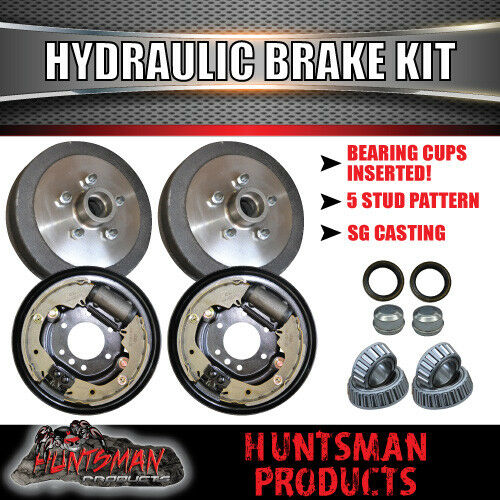

2X 9" HUB DRUMS. S.G CASTING.  WHEEL STUDS AND NUTS SUPPLIED (drums come with cups already inserted)
2X SLIMLINE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

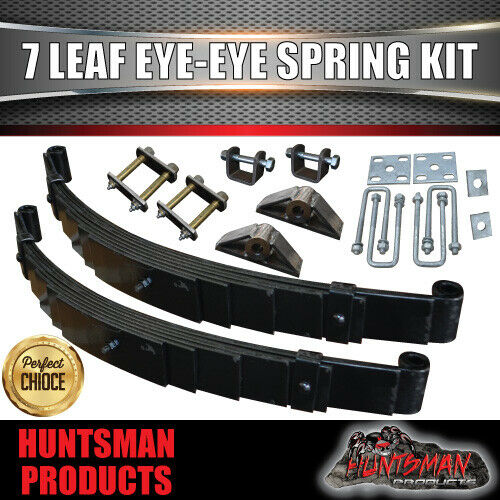

2X 7 LEAF 60MM X 6MM BLACK EYE TO EYE SPRINGS.  RATED 1600KG PER PAIR.  (springs are shot peened for extra strength)

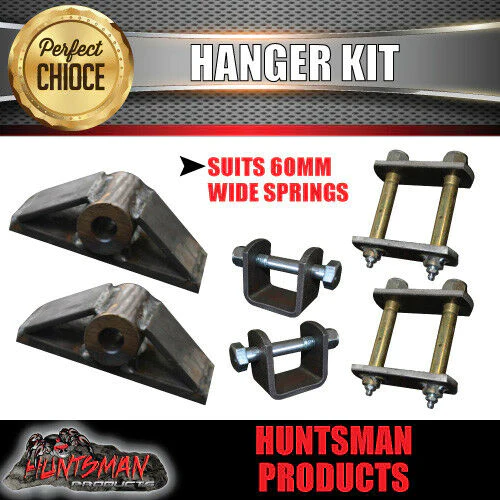

2X FRONT SHACKLE HANGERS
2X REAR SHACKLE HANGERS WITH EXTRA STRENGTH GUSSET SUPPORTS
2 x DOUBLE REAR HIGH TENSILE SHACKLE BOLTS WITH GREASE NIPPLES
2X HIGH TENSILE FRONT FRONT SPRING BOLTS
2X FISH PLATES
4X 45MM X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

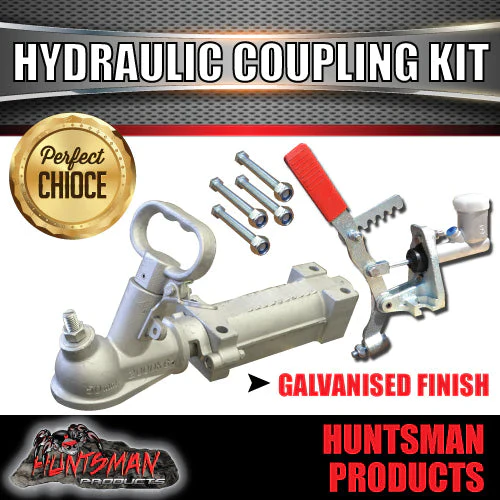

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING BASE PLATE
1X 3/4"MASTER CYLINDER WITH STAINLESS MOUNTING BOLTS
1X MASTER CYLINDER BRACKET

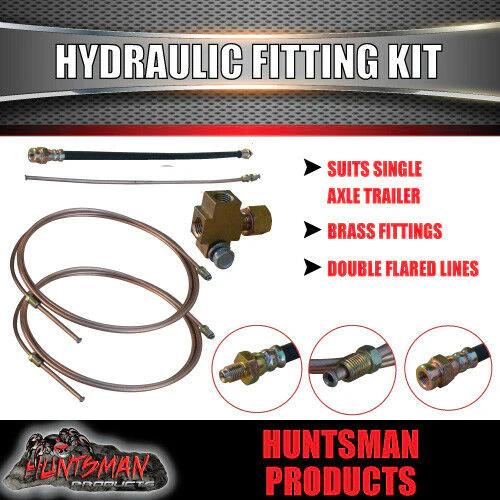

1 X 300MM MALE/FEMALE FLEXI HOSE
1X 2500MM MAIN COUPLING TO AXLE FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING WITH PRE FLARED LINES!!

Please check coupling to axle hydraulic line length.  if longer is required please get in contact with

ON PURCHASING PLEASE PROVE YOUR STUD PATTERN AND AXLE LENGTH





upgrade to the easy instillation hydraulic line setup. (click on links below)
12ft set up: $50
16ft set up: $55

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"



EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295
ASSEMBLE OF AXLE $50



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"



NOT SURE THE AXLE SIZE YOU NEED? ASK US?



EYE TO EYE SPRING SETUP

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs



SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
