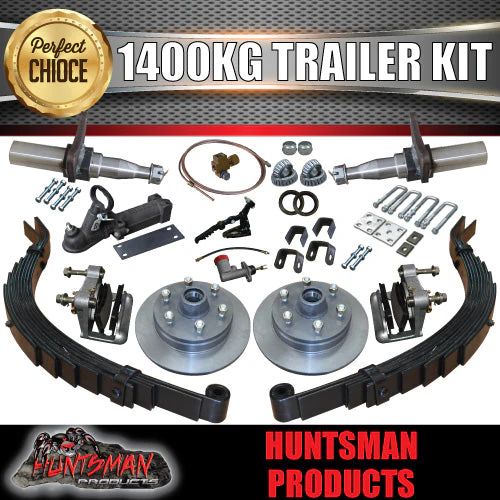

DIY 1400KG KIT. 12" L/C HYDRAULIC DISC BRAKES. SLIPPER SPRINGS. STUB AXLES
DIY SINGLE AXLE TRAILER KIT
1400KG RATED (12" L/C DISCS)
EYE TO SLIPPER SPRINGS
45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION
AVAILABLE STUD PATTERNS
5 STUD LANDCRUISER (5/150 PCD)
6 STUD LANDCRUISER, RANGER, BT50, HILUX ETC (6/139.7 PCD)
IN THIS KIT

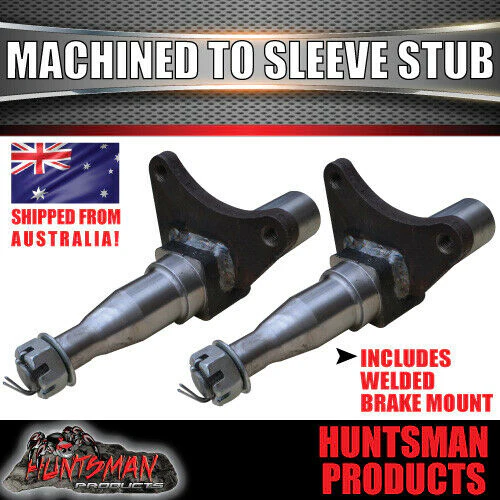

2X 45MM X 250MM SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S WITH 12" HYDRAULIC DISC MOUNTS WELDED. ALSO COMES WITH SPLIT PINS AND WASHER

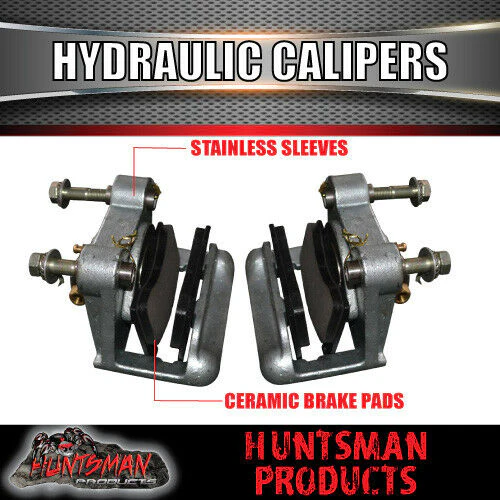

2X HYDRAULIC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS

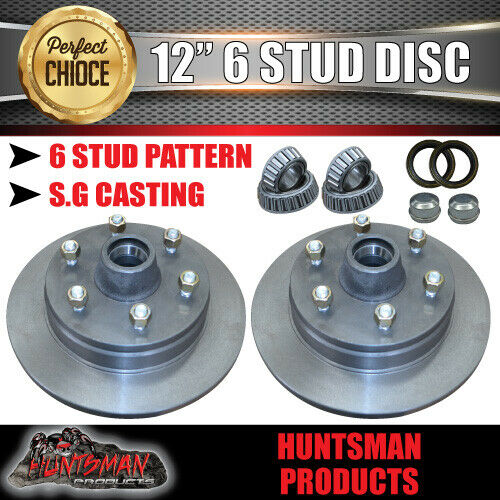

2X 12" NATURAL FINISH DISCS (AVAILABLE IN 5 OR 6 STUD LANDCRUISER PATTERN) discs come with cups already inserted
2X SLIMLINE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

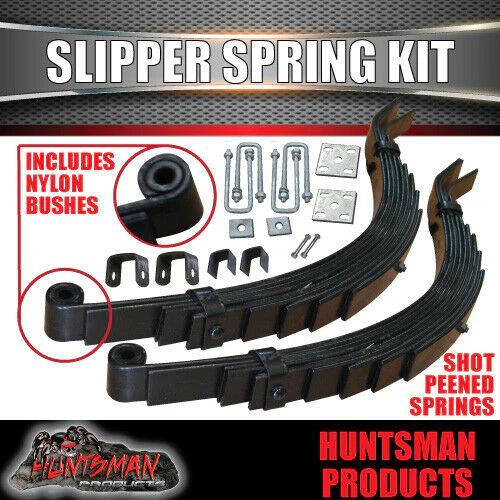

2X 9 LEAF 45MM X 6MM BLACK SLIPPER SPRINGS. RATED 1600KG PER PAIR. (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

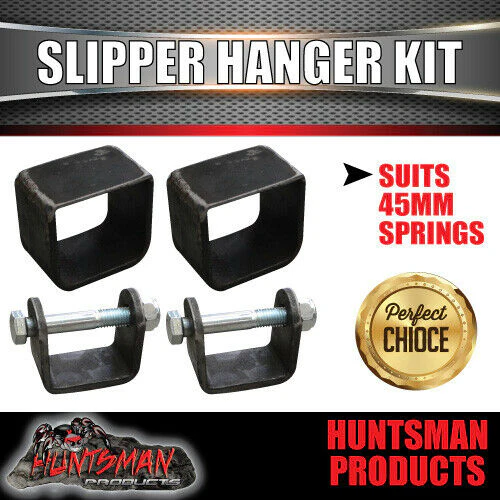

2X FRONT HANGERS WITH SPRING BOLTS
2X REAR HANGERS
2X FISH PLATES
4X 50 X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

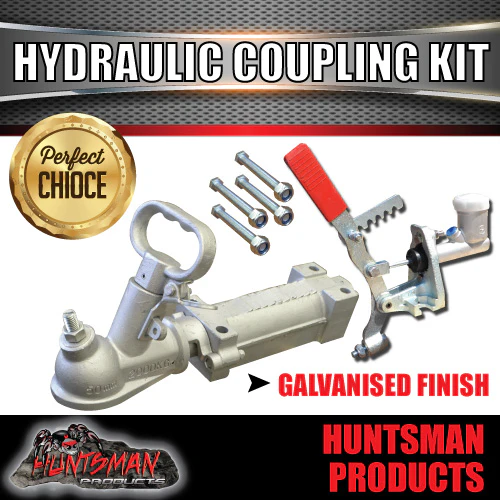

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE WELD ON COUPLING BASE PLATE
1X 3/4"MASTER CYLINDER
1X MASTER CYLINDER BRACKET

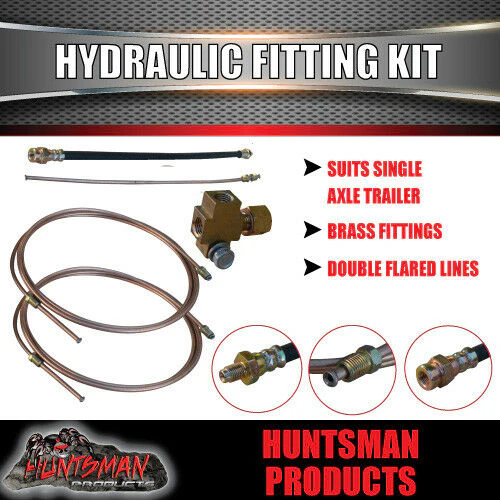

1 X 300MM MALE/FEMALE FLEXI HOSE
1X 2500MM MAIN COUPLING TO AXLE FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING WITH PRE FLARED LINES SUPPLIED!!
Please check coupling to axle hydraulic line length. if longer is required please get in contact with
ON PURCHASING PLESAE PROVE YOUR STUD PATTERN AND AXLE LENGTH
upgrade to the easy instillation hydraulic line setup.
12ft set up: $50 (CLICK ON LINK BELOW)
16ft set up: $55 (CLICK ON LINK BELOW)
"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"
"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"
BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLINK ON LINK BELOW)
"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
