DIY 1300Kg off road trailer kit. off road springs, 45mm 78-96" axles
OFF ROAD CAMPER TRAILER OR OFF ROAD TRAILER KIT
RATED 1300kg
78" - 96" AXLES (for shorter axles sku: 180495966857)
Legally rated on road at 750kg (as comes with no brakes) but built to last
STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)
6 STUD D40/NP300 (6/114.3 PCD, 1/2" STUDS AND NUTS)
5 STUD SUZUKI / F100 (5/139.7, 9/16" STUDS AND NUTS)
IN THIS KIT

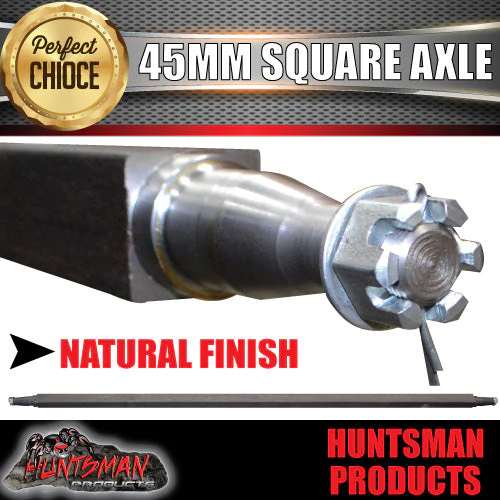

1X 45MM SQUARE SOLID AXLE , ALSO COMES WITH SPLIT PINS & WASHERS (ON ORDERING PLEASE SPECIFY SIZE OF AXLE) AVAILABLE IN 78", 79", 81", 83", 85", 87", 89", 91", 93", 94", 96". ( TIP TO TIP)
2X LAZY HUBS WITH CUPS ALREADY PRESSED IN. S.G CASTING
2X SLIMLINE BEARING SETS (2X SLIM LINE INNER BEARINGS, 2X SLIM LINE OUTER BEARINGS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

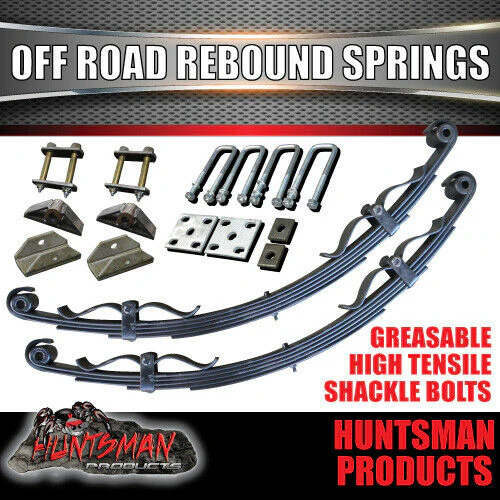

2X 5 LEAF 60MMX7MM OFF ROAD BLACK SPRINGS WITH DAMPNERS (RATED 1300KG) (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
2X FRONT OFF ROAD HANGERS
2X REAR EYE OFF ROAD HANGERS
2X OFF ROAD SLOTTED FISH PLATES
4X OFF ROAD 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
2X GREASABLE HIGH TENSILE DOUBLE SHACKLE BOLTS
2X GREASABLE HIGH TENSILE SHACKLE PINS
2X AXLE PADS

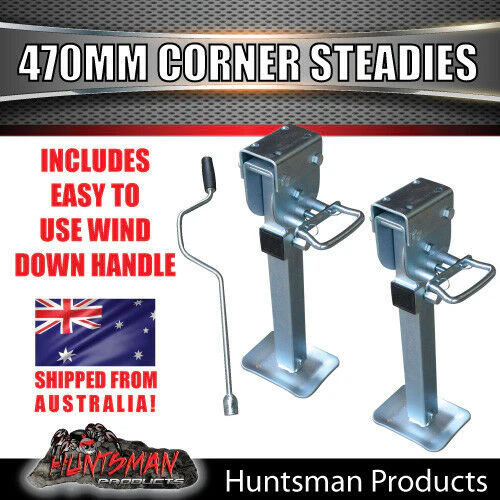

2X DROP DOWN CORNER STEADIES
1X CORNER STEADY HANDLE
1X 10" HUNTSMAN SWING UP OFF ROAD JOCKEY WHEEL

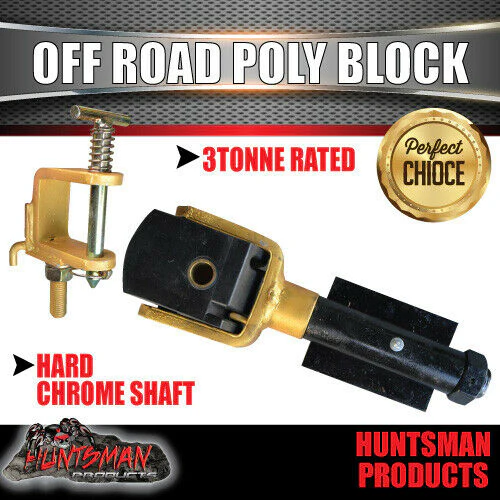

1X POLY BLOCK WELD ON COUPLING WITH HARD CHROME SHAFT AND CAR ADAPTOR
ON PURCHASING PLEASE PROVIDE YOUR AXLE LENGTH AND STUD PATTERN
EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295, DROP AXLES APPROX. 5 DAYS TO ENGINEER
JAPANESE MANUFACTURED BEARINGS $50 (click on link below)
SPRING ASSEMBLY BELOW
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
