Alko Trailer Caravab 6000kg Ring Coupling & Handbrake Kit Suit Pintle Hook 3" 614309
ALKO 6.0 TONNE FIXED RING TYPE COUPLING & HANDBRAKE KIT
3" (75mm ID, 116mm OD)
* This style of coupling is similar in function to ball type couplings (fixed and over ride ) but instead of the connection to the tow vehicle being a standard 50 mm ball, the connection is a 75 mm inside diameter ring and this attaches to a “pintle hook” fitted to the tow vehicle.
* These types of couplings are primarily used in applications where the tow vehicle is a heavy commercial truck.
* As the Australian Standard AS 4177 states the 50mm towball to have a maximum capacity of 3500 kg ATM (total loaded mass), ring couplings are used when higher loads are involved.

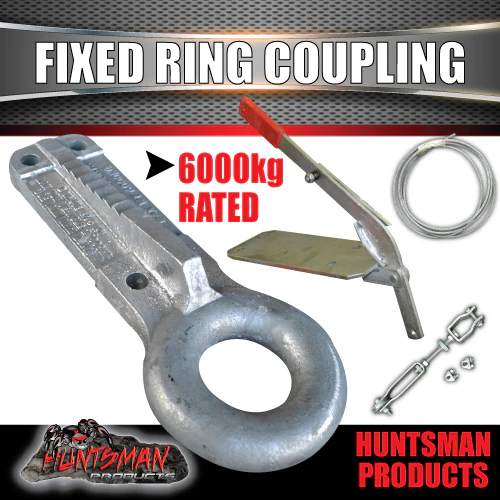

IN THIS KIT
1X 6000KG RING COUPLING
1X BASE PLATE WITH HANDBRAKE LEVER
8X METRES HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2X CABLE CLAMPS

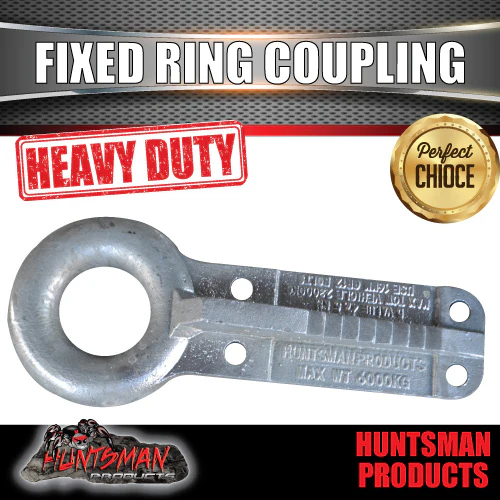

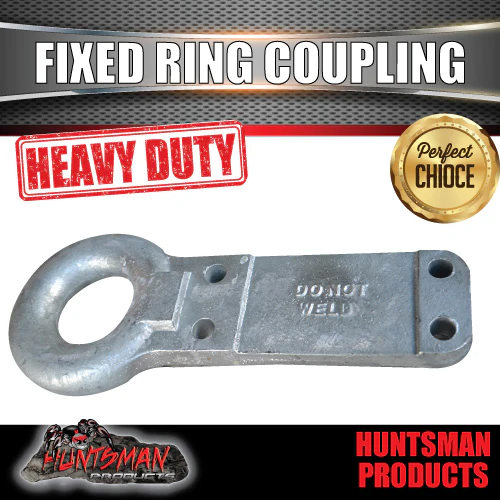

614309 - AL-KO Fixed Ring Coupling, 6000kg 75mm, 4 hole Plated finish Suit Pintle.
Rating: 6000kg
Ring Size: 75mm (3")
Mounting Hole: 182mm (L) x 52mm (W)
Mounting Hole Diameter: 16.8mm
Surface Finish: Zinc Plated
Ring centre to first mounting hole (Nominal): 116mm
Original: $143.99
-70%$143.99
$43.20More Images
Alko Trailer Caravab 6000kg Ring Coupling & Handbrake Kit Suit Pintle Hook 3" 614309
ALKO 6.0 TONNE FIXED RING TYPE COUPLING & HANDBRAKE KIT
3" (75mm ID, 116mm OD)
* This style of coupling is similar in function to ball type couplings (fixed and over ride ) but instead of the connection to the tow vehicle being a standard 50 mm ball, the connection is a 75 mm inside diameter ring and this attaches to a “pintle hook” fitted to the tow vehicle.
* These types of couplings are primarily used in applications where the tow vehicle is a heavy commercial truck.
* As the Australian Standard AS 4177 states the 50mm towball to have a maximum capacity of 3500 kg ATM (total loaded mass), ring couplings are used when higher loads are involved.
IN THIS KIT
1X 6000KG RING COUPLING
1X BASE PLATE WITH HANDBRAKE LEVER
8X METRES HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2X CABLE CLAMPS
614309 - AL-KO Fixed Ring Coupling, 6000kg 75mm, 4 hole Plated finish Suit Pintle.
Rating: 6000kg
Ring Size: 75mm (3")
Mounting Hole: 182mm (L) x 52mm (W)
Mounting Hole Diameter: 16.8mm
Surface Finish: Zinc Plated
Ring centre to first mounting hole (Nominal): 116mm
