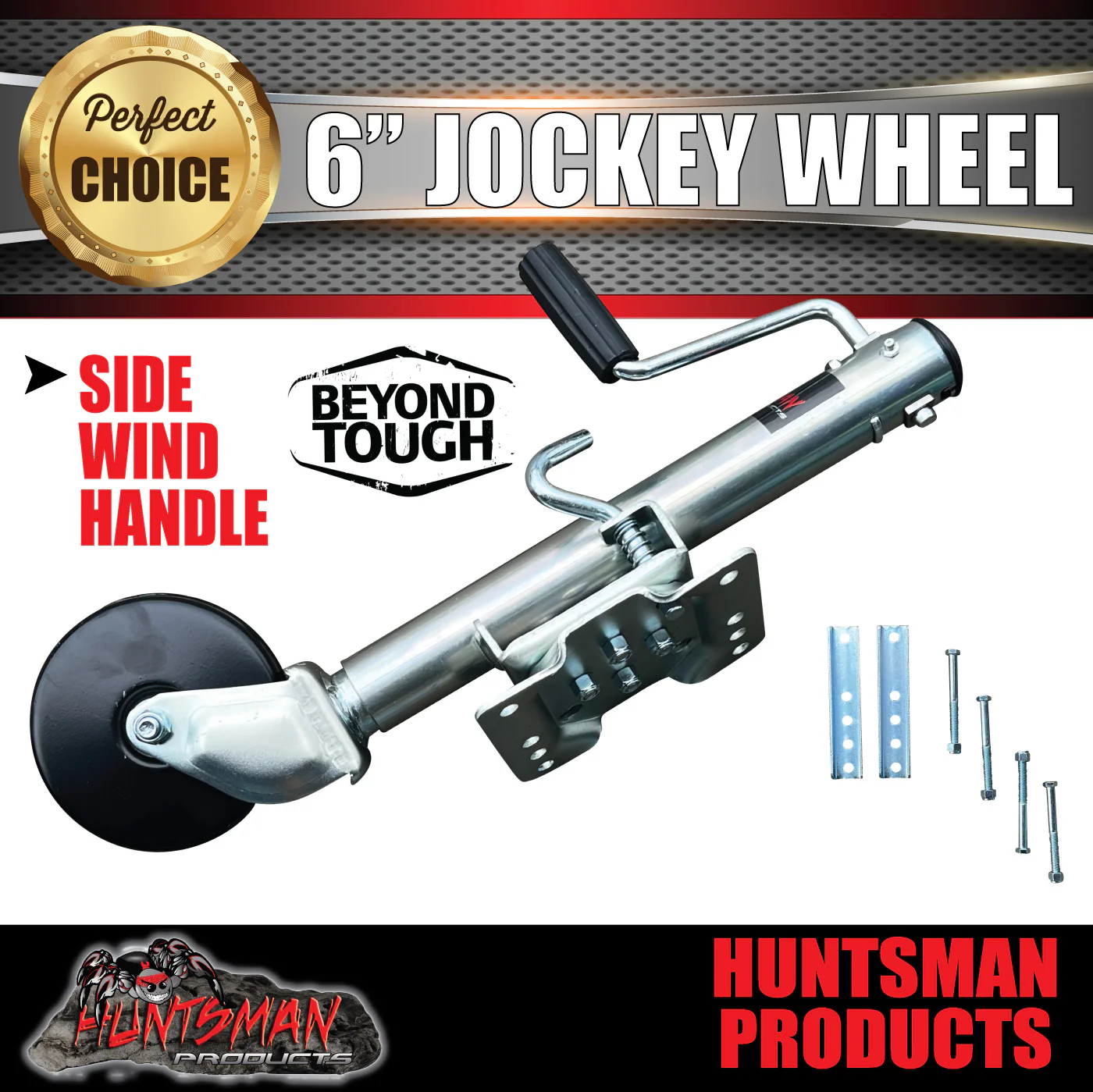

545Kg Caravan Trailer 6" Swing Up Side Wind Jockey Wheel & Mount kit. Steel Wheel
HEAVY DUTY 6" JOCKEY WHEEL & MOUNT KIT
HEAVY DUTY STEEL 6" WHEEL
RATED AT 545KG (BALL WEIGHT)

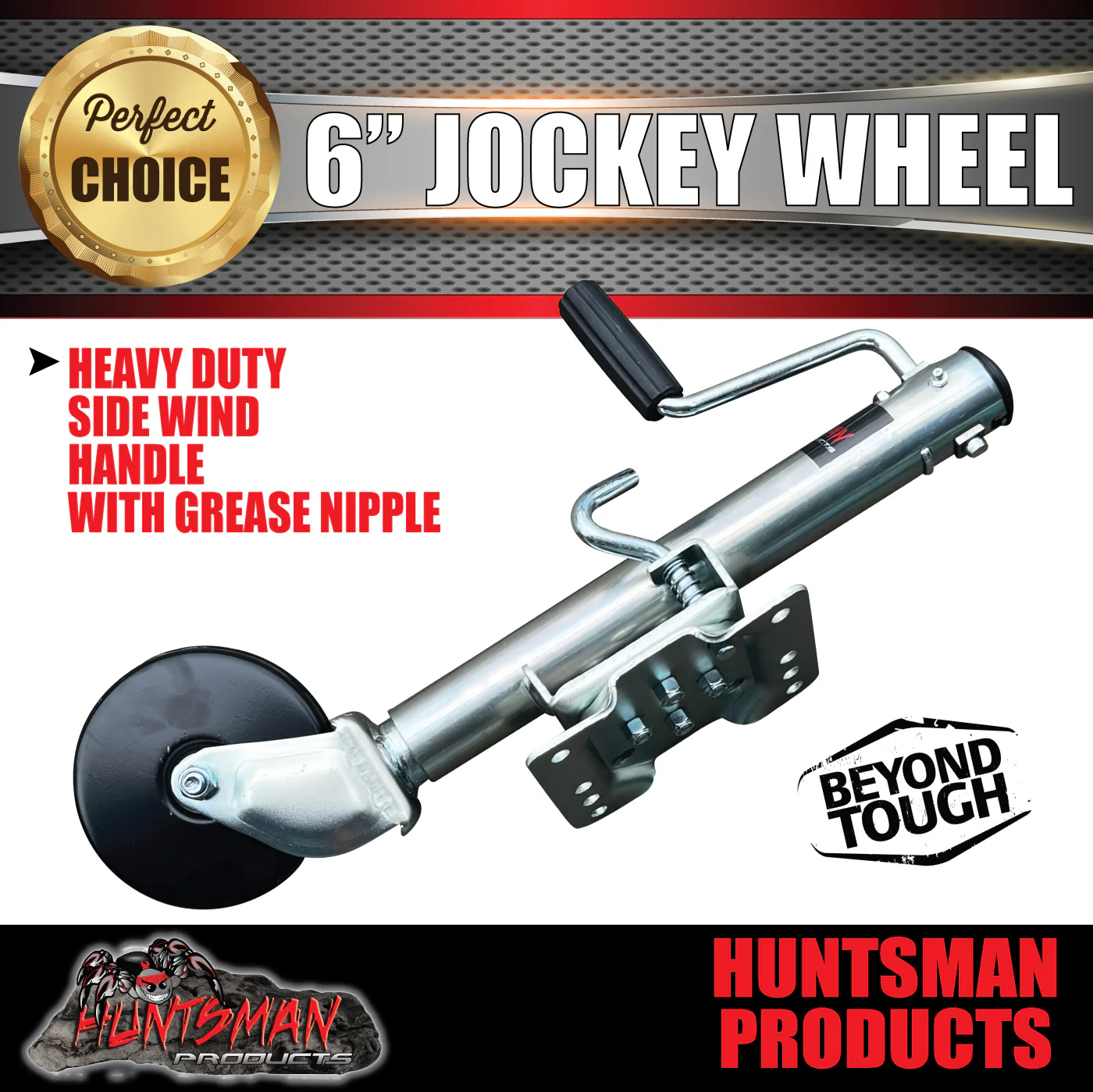

6" SIDE WIND SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

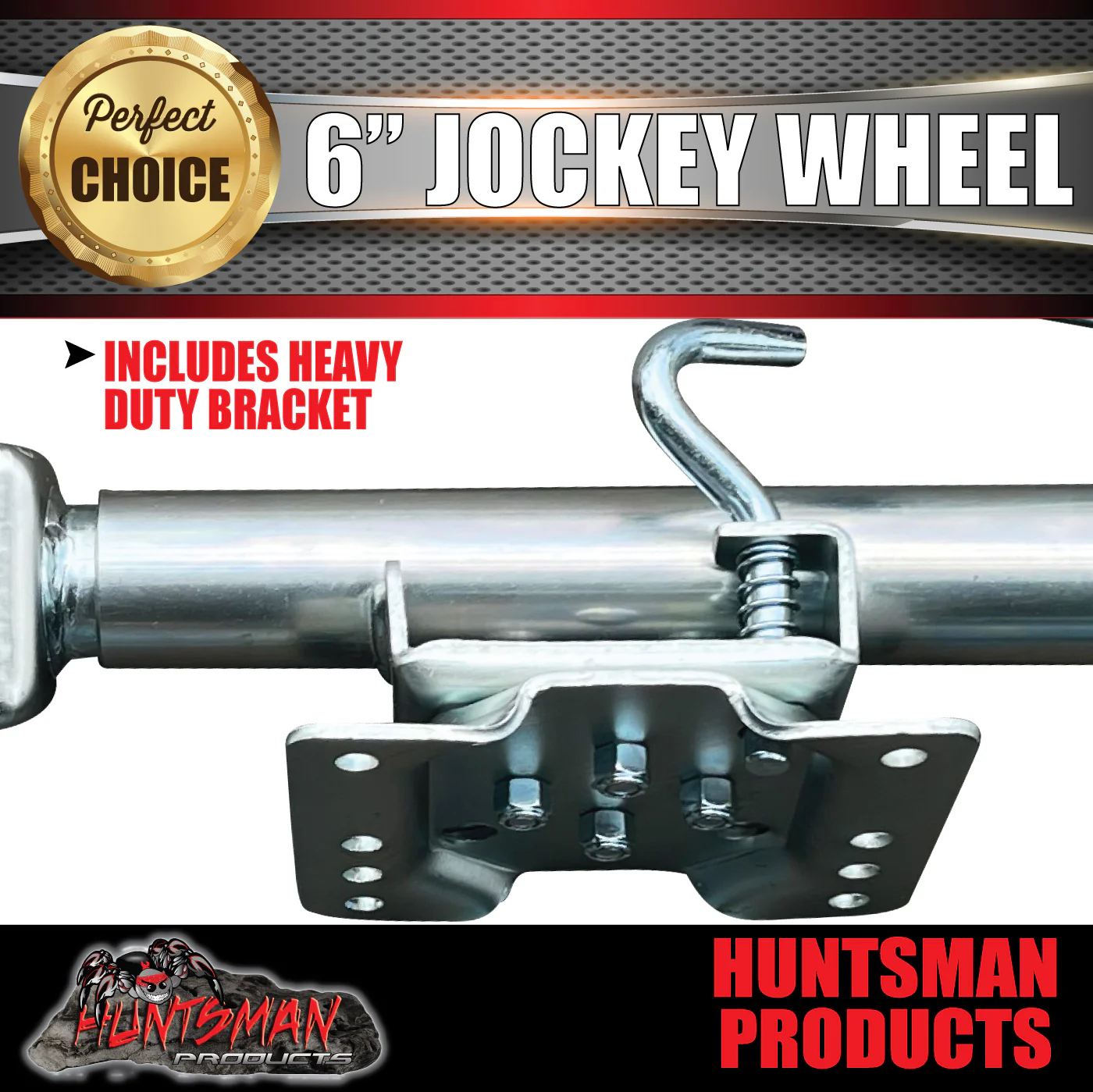

4 BOLT SWIVEL BRACKET (SUITED FOR 50MM, 75MM AND 100MM A FRAMES)

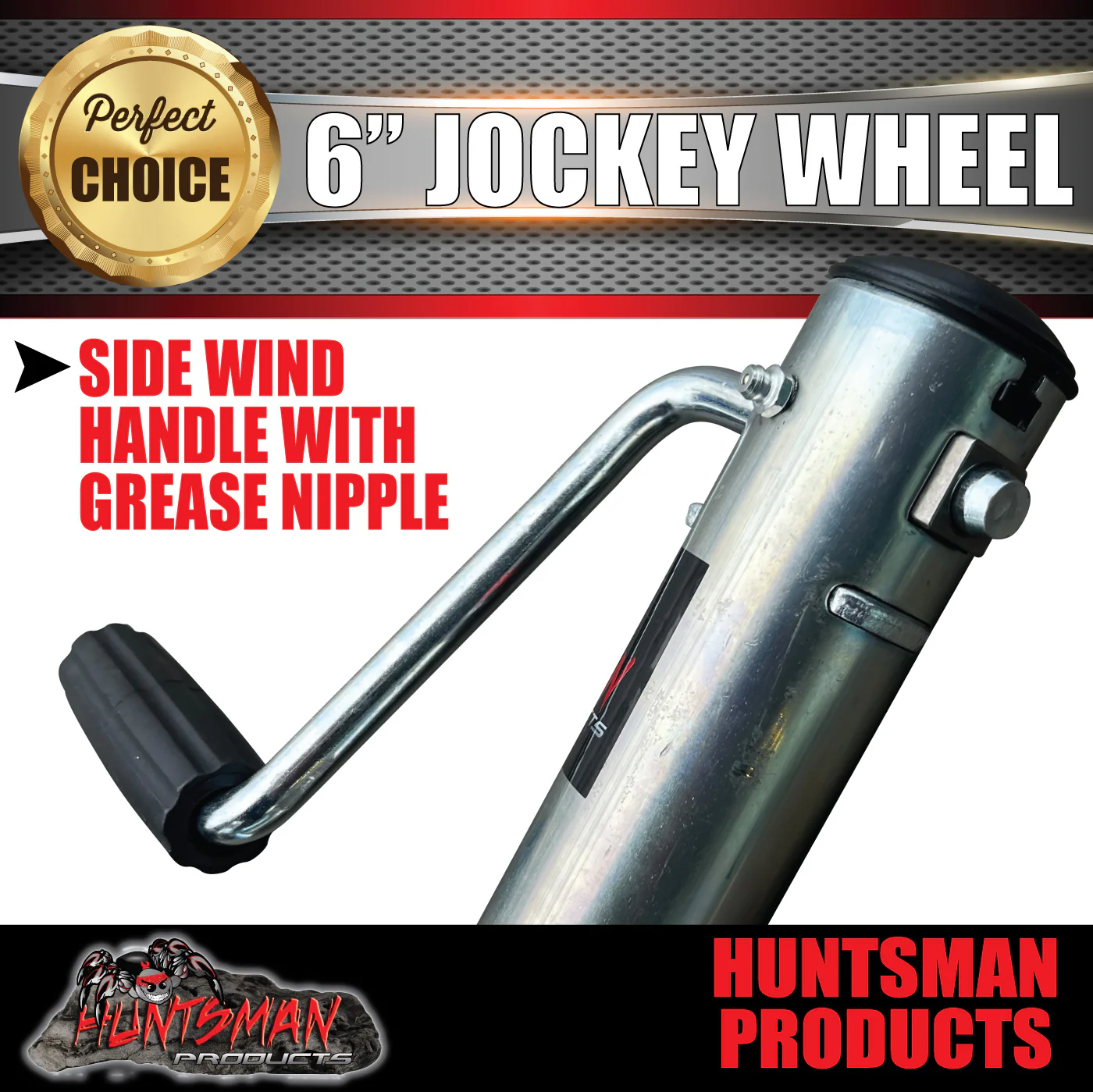

PLASTIC MOULDED HANDLE
5MM PRESSED FORK

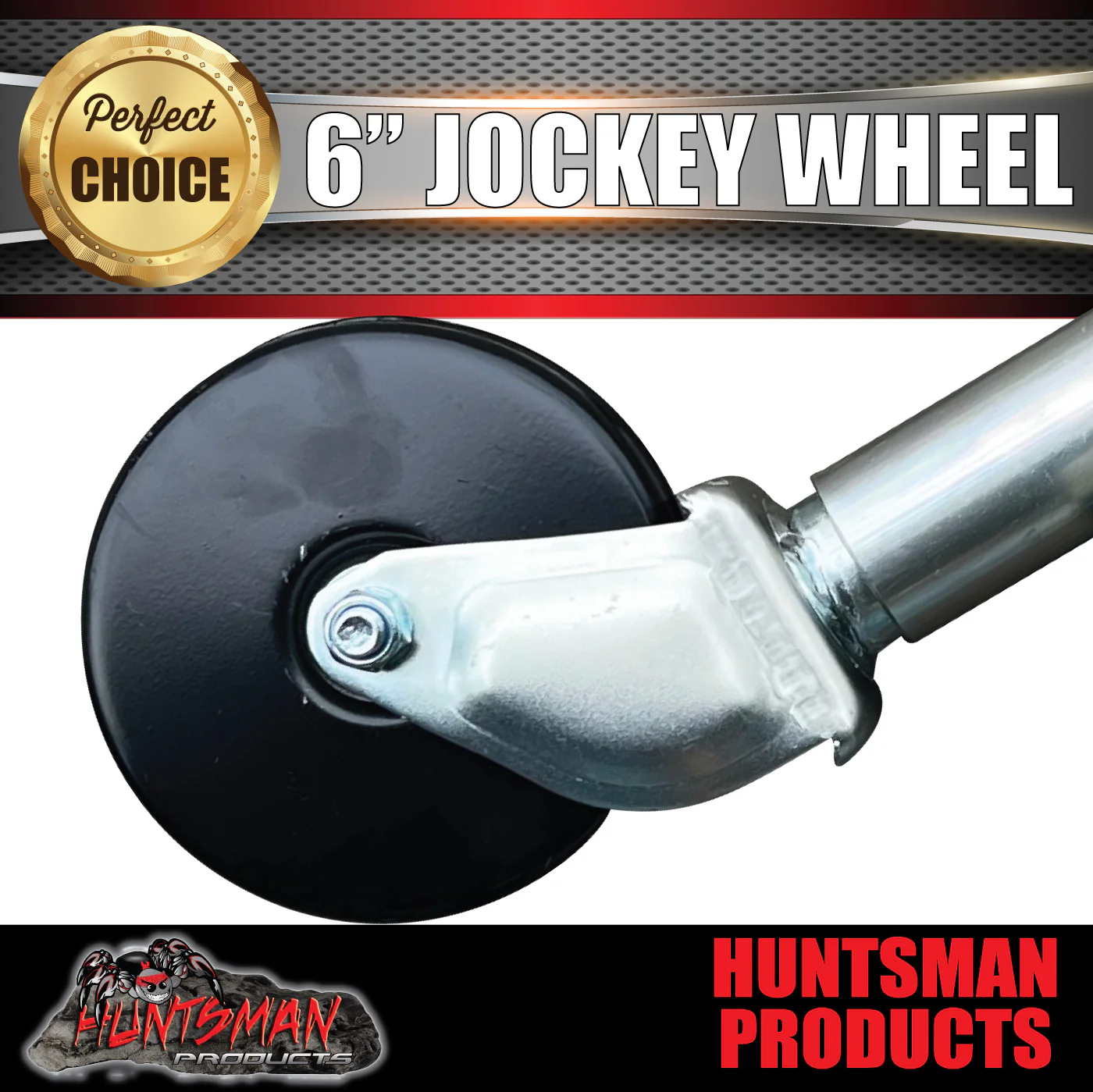

STEEL WHEEL
MOUNT KIT INCLUDES
2X TOP HAT ANGLE BRACKETS ZINC FINISH
4X M6 105MM ZINC BOLTS WITH NYLOC NUTS
UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
height from centre of bracket to bottom of tyre
fully closed 325mm
fully extended 600mm
Height from middle of bracket to top of Jockey wheel: 265mm
Overall Length closed: 600mm
Travel: 260mm
FULLY GREASABLE
More Images
545Kg Caravan Trailer 6" Swing Up Side Wind Jockey Wheel & Mount kit. Steel Wheel
HEAVY DUTY 6" JOCKEY WHEEL & MOUNT KIT
HEAVY DUTY STEEL 6" WHEEL
RATED AT 545KG (BALL WEIGHT)
6" SIDE WIND SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED
4 BOLT SWIVEL BRACKET (SUITED FOR 50MM, 75MM AND 100MM A FRAMES)
PLASTIC MOULDED HANDLE
5MM PRESSED FORK
STEEL WHEEL
MOUNT KIT INCLUDES
2X TOP HAT ANGLE BRACKETS ZINC FINISH
4X M6 105MM ZINC BOLTS WITH NYLOC NUTS
UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
height from centre of bracket to bottom of tyre
fully closed 325mm
fully extended 600mm
Height from middle of bracket to top of Jockey wheel: 265mm
Overall Length closed: 600mm
Travel: 260mm
FULLY GREASABLE
