5 Leaf Off Road Camper Caravan Trailer spring Set 1200Kg with Rebound Straps.

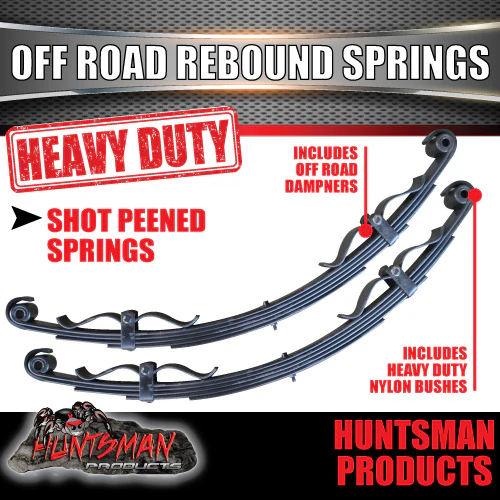

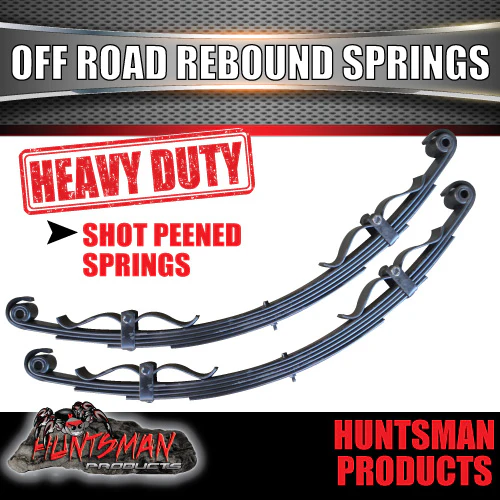

5 LEAF 1200kg OFF ROAD HEAVY DUTY EYE TO EYE TRAILER SPRING SET
GREASABLE FRONT AND REAR HANGERS, REBOUND DAMPNER STRAPS
SHOT PEENED SPRINGS

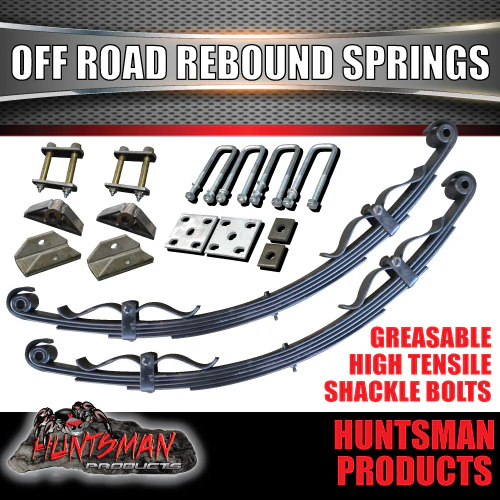

IN THIS KIT
2X HEAVY DUTY 60MMX7MM OFF ROAD EYE TO EYE BLACK SPRINGS WITH REBOUND STRAPS (Rated 1200kg per pair)

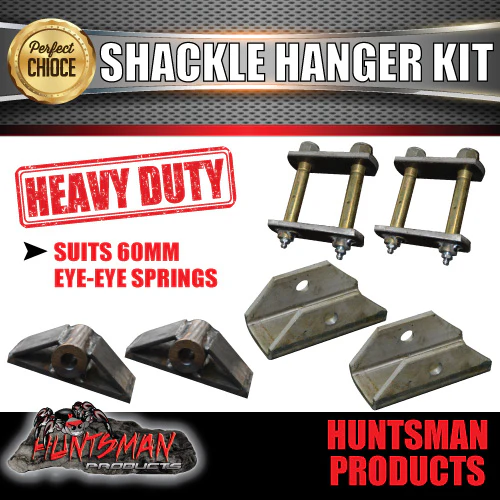

2X FRONT OFF ROAD HANGERS
2X REAR EYE HANGERS. WITH EXTRA STRENGTH GUSSETS
2X OFF ROAD FISH PLATES.
4X OFF ROAD 5/8"HIGH TENSILE U BOLTS WITH NUTS AND WASHERS. (40MM SQUARE, 45MM SQUARE 50MM SQUARE, 63MM SQUARE OR 65MM ROUND AVAILABLE)
2X REAR DOUBLE SHACKLE PLATES AND HIGH TENSILE SHACKLE BOLTS (WITH GREASE NIPPLES)
2X SHACKLE PINS WITH GREASE NIPPLES
2X AXLE PADS
All huntsman off road springs come with 6x greasable shackles.
Solid hangers with reinforced rear hangers
10mm fish plates
CENTRE EYE TO CENTRE EYE = APPROX 830MM
END TO END = APPROX 900MM
CAMBER ARC HEIGHT 160MM. (SPRING ONLY. NOT ASSEMBLED ON HANGERS)
SPRING WIDTH = 60MM
LEAF THICKNESS = 7MM
COMES WITH 2 X REBOUND DAMPNERS PER SPRING (SHOCK ABSORPTION)
SPRINGS ARE SHOT PEENED
Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
